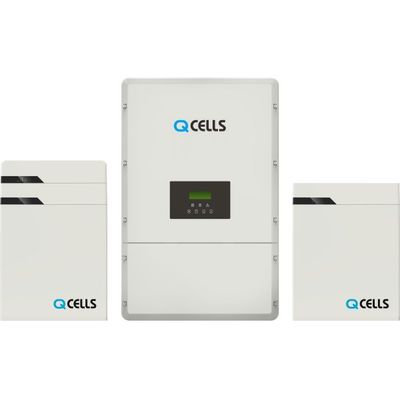

Qcells - Model Q.HOME ESS HYB-G1 -Modular Energy Storage Solution for North America
The Q.HOME? ESS HYB-G1 energy storage solution offers scalable storage capacity from 4.5 kWh up to 18.9 kWh and comes in a modular design for easy and fast installation. The system can connect up to three batteries in series using only one inverter and battery management system (BMS). The system includes an integrated backup power function for 100% of the rated inverter output to support critical loads in the event of power failure and offers remote monitoring using the Q.HOME? web portal or Q.HOME? ESS mobile app.
Scalable solution for optimized consumption
Scalable storage capacity from 4.5kWh up to 18.9kWh to suit all consumption cases.
Smart design
Module design for easy and fast installation, remote control operated hybrid system with PV inverter, lithium-ion battery, and battery charger.
Remote monitoring
Easy maintenance due to its early error detection function, web and mobile monitoring, and a reliable service network.
Safety and reliability
Premium quality lithium-ion.
Durability
High durability with 10 year product warranty and 90% depth of discharge (DoD).
100% backup power function
Thanks to the integrated backup power function, even in the event of power failure 100% of the rated inverter output will support critical loads.
- Storage Capacity (Max.efficiency)
- 4.5kWh up to 18.9kWh
- PV DATA (DC) Max. input power
- 7.2kW up to 10.32kW
- BATTERY DATA (DC) Max. power
- 8.3kW with three battery modules
- BACKUP POWER OUTPUT (AC) Max. output power
- 6.6kW up to 8.3kW
- Solar System to Grid (Max.efficiency)
- 96.7%
- Solar System to Battery (Max.efficiency)
- 98.3%
- Battery to Grid (Max.efficiency)
- 96.5%
- Inverter Format / Weight
- 36 × 22 × 10.9 in / 130 lbs
- Storage Format / Weight
- 18.3 × 7.6 × 23.1 in / 124.8 lbs
- Mounting
- Wall-mounted
- Color
- Natural
- Product Warranty
- 10 years
- Performance Warranty
- 10 years
