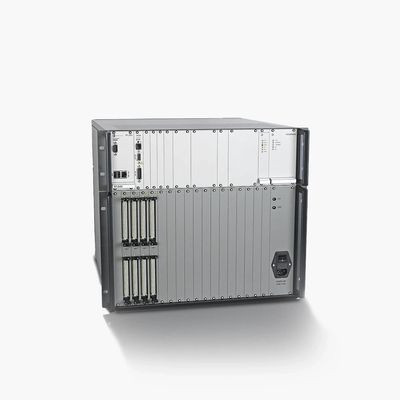

Adaptronic - Model NT 644 -Modular High-Voltage Wiring Tester System
The NT 644 high-voltage wiring tester performs insulation tests up to 2150 VDC and dielectric strength tests up to 1500 VAC at up to 1024 test points. The NT 644 high-voltage wiring tester handles even the most complex testing jobs effortlessly. The test device reliably checks to ensure that your products meet the highest quality standards and function flawlessly in every situation.From connection and short-circuit tests to comprehensive component tests, the NT 644 covers all requirements and can be expanded in such a way that testing relays, time relays, contactors, indicator lamps, and function sequences is carried out automatically. The PC software controls even complex tests and the detailed error analyses and comprehensive result reports as a file, prepared for a printer, or sent via a database connection help to continuously improve the quality of the products.
Metric
NT 644
- High voltage test (AC) max.: 1500 V
- Test current (AC) min.: 6 mA
- Control software: NT Control
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Interfaces: Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator
- Dimensions/height: 410 mm
- Width: 450 mm
- Dimensions/depth: 520 mm
- Weight: ca. 21 kg
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Ambient temperature, operation min.: 10 °C
- Ambient temperature, operation max.: 40 °C
- Ambient temperature, storage min.: 10 °C
- Ambient temperature, storage max.: 60 °C
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (AC) max.: 1500 V
- Test voltage (DC) max.: 2150 V
- Test current (DC) max.: 2 A
- Test points, total max.: 1024
- Continuity test via threshold identification min.: 0.001 Ω
- Continuity test via threshold identification max.: 10000000 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 5 MΩ
- Resistance measurement min.: 0.001 Ω
- Resistance measurement max.: 10000 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.02 F
- High voltage test (DC) max.: 2150 V
- DIO voltage max.: 24 V
Imperial
- High voltage test (AC) max.: 1500 V
- Test current (AC) min.: 6 mA
- Control software: NT Control
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Interfaces: Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator
- Weight: ca. 46.3 lb
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Ambient temperature, operation min.: 50 °F
- Ambient temperature, operation max.: 104 °F
- Ambient temperature, storage min.: 50 °F
- Ambient temperature, storage max.: 140 °F
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (AC) max.: 1500 V
- Test voltage (DC) max.: 2150 V
- Test current (DC) max.: 2 A
- Test points, total max.: 1024
- Continuity test via threshold identification min.: 0.001 Ω
- Continuity test via threshold identification max.: 10000000 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 5 MΩ
- Resistance measurement min.: 0.001 Ω
- Resistance measurement max.: 10000 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.02 F
- High voltage test (DC) max.: 2150 V
- DIO voltage max.: 24 V
