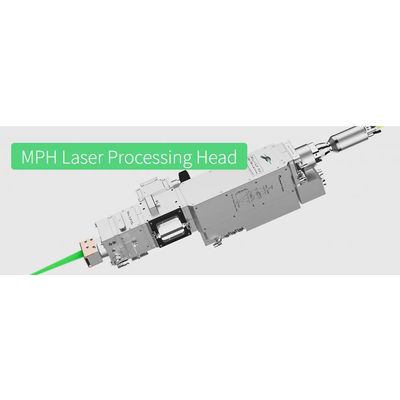

Photonic Tools - Model MPH - Modular Laser Processing Head for Multi Kilowatt Applications
The MPH Laser Processing Head is a modular and highly versatile solution designed to meet the diverse needs of multi-kilowatt laser applications. Engineered to accommodate a variety of high-power laser tasks, this processing head can be easily configured to suit specific requirements while ensuring high reliability and seamless integration with advanced manufacturing systems. The MPH is built to handle stringent industrial standards and offers robust performance in terms of optical, mechanical, electrical, and cooling capabilities. Additionally, it supports a range of accessories for further customization, making it an ideal choice for complex laser-based applications in modern, high-tech manufacturing environments.
The growing diversity of the high power laser applications calls for a flexible laser processing head which can not only be easily configured but also fullfills the stringent requirements of the advanced manufacturing industry in terms of reliability and machine interfacing. This is what the MPH is designed for:
- A simple optical system which is efficient, can be flexibly configured flexible and is suitable for lasers up to 20 kW laser power
- Specifically designed sensors monitor the status of all critical optical elements und functional components. The head communicates by EtherCAT (or other fieldbus adapters) with the user via the process machine.
- The processing head`s revolutionary (however) conservative design enables field repair and service even of the optical modules. The advantage to the customer is a drastically reduced spares holding cost and a very short MTTR.
Optical
- Total magnification : M = Mcol * Mfoc
- Collimation modules magnification / focal length : 1,0 / 200mm, 1,33 / 150mm, 1,5 / 133mm, 2,0 / 100 mm, 1,44-4,0 / 150 - 50 mm
- Focusing modules magnification / focal length : 1,0 (200), 1,5 (300 ), 2,0 (400), 3,0 (600), 6,0 (1200)
- Axial focus movement range (only MZ collimation) : 30mm * Mfoc
- Beam parameter acceptance : 125 / 200 mrad
- Transmission wavelength range : 1000 - 1100 nm, 900 - 1100 nm
- Fiber core diameter : 20 - 1500 µm
- Max. laser power : 20 kW
Mechanical Data
- Dimensions : approx. 500 x 120 x 20 mm, depending on configuration
- Weight : approx. 5 - 10 kg, depending on configuration
- Laser light cable : LLK-B, LLK-D, PT-B, PT-D, PT-F, PT-Q, QBH
Electrical
- Power supply : 24 V DC, 2A
- Communication : EtherCAT, *
Cooling
- Coolant temperature : 20 - 35°C, non condensing
- Flow rate : 2l / min
Envrironmental
- Operating conditions : 5 - 50 °C
- Shipment and storage : -25 - 70 °C.
