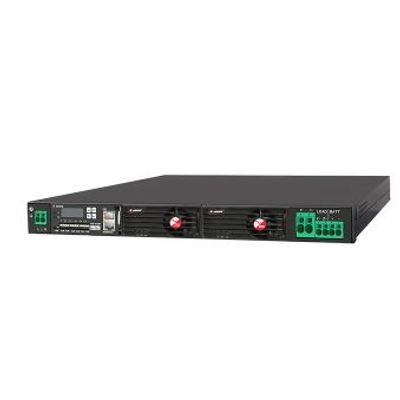

La-Marche - Model LMP 100A - Modular Switchmode Rectifiers

SHARE

The LmPower Series is a compact -48V DC power system with high-performance rectifiers . The LmPower is offered in 3 different configurations; LMP-100A (1RU), LMP-200A (5RU) and LMP-400A (6RU). LmPower series can be mounted on standard 19” and 23” racks.

Most popular related searches
dc power system
battery charger
battery management
battery protection
power performance
  • 50A/48V 1RU Rectifier: Universal AC Input, High Density, High Efficiency, Excellent High Temperature Performance (Full Load @ 50°C)
  • Wide Operating Temperature Range (-40°C to 65°C)
  • Hot-Swappable Rectifiers Provide Easy Installation and Maintenance
  • Standard Installation Structure Design, Adapt to Various Applications
  • Rectifier Hibernation Function to Help Increase System Efficiency
  • Intelligent Battery Management and Protection to Help Prolong Battery Lifespan
  • Support Environmental Signal Monitoring and Remote Management Through Dry Contact, Serial Interface or Ethernet Interface
  • Load Distribution Breakers With LVBD/LVLD (Low Voltage Battery/Load Disconnect)

Output :

  • -42 to -58VDC, Nominal -53.5VDC

Input:

  • 85 - 300VAC (1Ph), Rated: 220VAC

Rated Power:

  • 6KW

Applications:

  • 5G / 4G / Datacom
  • Radio Base Stations/ Cell Sites
  • Mobile Switching Center (MSC)
  • Distributed Antenna Systems (DAS)
  • Microwave Transmission / Switches
  • Fiber Optics / FTTX
  • Individual Base Transceiver (BTS)
