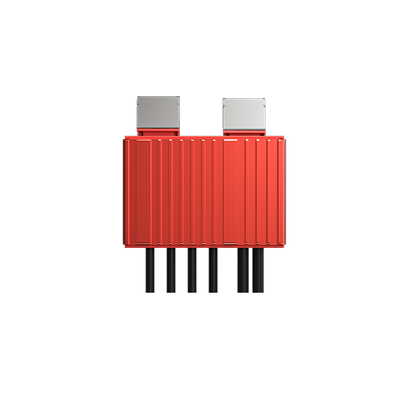

BENY - Model BFS-A1 - Module-Level Rapid Shutdown Device With Aluminum Enclosure
BFS-A1 is a rapid shutdown switch for connection to PV panel arrays to achieve compliance with 2014 NEC 690.12 and 2017 NEC 690.12.
Most popular related searches
DC power supply
photovoltaic panel array
string inverter
photovoltaic panel
power cable
solar installation
photovoltaic system
solar panel
inverter
power optimization
- Module Level Rapid Shutdown
- Manual Shutdown by Button Switch
- Automatic Shutdown on AC Power Loss
- Improved Heat Dissipation with Aluminum Casing
- Over temperature (>100℃) Automatic Shutdown
- Compatible with Most String Inverters and Panels
- No cross-talk with Inverter or WIFI
- Shutdown Panels to 0V at microsecond (μs) level
- 10 Years Warranty
- BFS-A1, a module-level solar rapid shutdown device, ensures fire safety for solar installations by maintaining continuous rapid shutdown functionality throughout the PV system’s lifespan.
- With automatic shutdown at temperatures exceeding 100℃, it requires no setup, is compatible with any string inverter, and offers flexibility in positioning.
- The emergency switch unit allows for Manual Emergency Shutdown and responds to local or area grid shutdowns.
For NEC 2017/2020 compliance, if the PV panel >40V, 1-to-1 configuration should be required in order to meet regulatory compliance.
The diagram above illustrates a typical 1-to 1 configured BFS protected installation using three solar panels and three BFS-A1. One more thing on the rooftop is the connection of BFS-A1 and the button switch via a communication cable.
- Automatically shut down the panels upon detecting a temperature in the area exceeding 100℃.
- Automatically shut down the panels in the button switch box in case of AC power supply loss.
- The firefighter can manually use the button switch to shut down the panels in case of an emergency.
- Model : BFS-A1
- Maximum Input Voltage : 110V : 70V
- Maximum Input Current : 20A : 25A
- Maximum Power (Input 1 + Input 2) : 2200W : 1750W
- PV Input and Output Cables : 4.0mm² (12AWG) Cables + MC4 Connectors
- PV Input Cables Length : 180mm
- PV Output Cables Length : 1800mm
- IP Protection : IP68
- Operating Temperature : -40°C to +85°C
- Storage Temperature : -40°C to +85°C
- Standard Compliance : EN 62109-1:2010, EN 61058-1:2018
- PV Connectors : Staubli MC4 (Standard); Jinko connectors for option
DC Power Supply for Each RSD
- Voltage Range : 14V ~ 28V
- Maximum Current : 8mA
- Maximum Power : 0.15W
- Power Supply Cables (Signal Cables) : 2×0.823mm² (18AWG) Signal Cables + Signal Connectors
- Power Supply Cables Length : 1800mm
Mechanical
- Enclosure Material : Aluminum
- Dimension : 118mm*107mm*28.4mm
