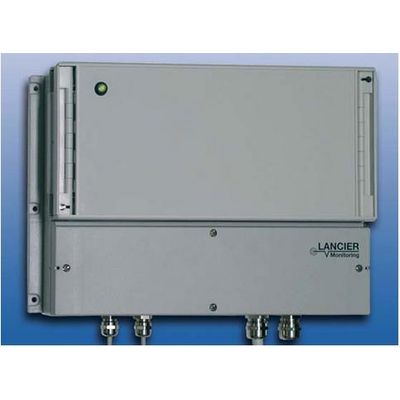

Lancier - Model MUX 101-DW -Monitoring Station for Universal Monitoring Tasks
The monitoring station MUX 101-DW is an universal platform for the permanent surveillance of copper or fiber network and related equipment. The 16 input channels can be configured to monitor addressable transducers and/or contactors which are measured periodically.
The UMS server permanently polls the actual measurement and system data via intranet (Ethernet, TCP/IP). It evaluates the sensing points states and stores all data in the database of the UMS server.
All connections and control units are stored in awall mount housing. The connections are fixed by screws and clamps ensuring an easy and cost effective mounting without the need of expensive special cables.
