PowMr - Model 540 Watt - Mono Half-cut ...

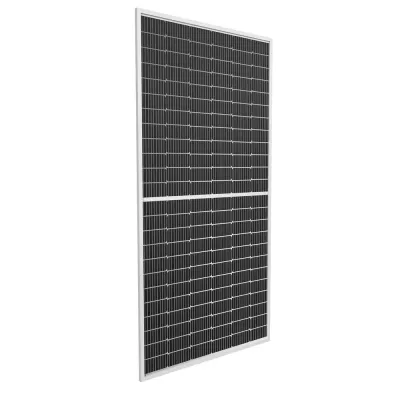

PowMr - Model 540 Watt -Mono Half-cut Solar Panel

SHARE

The 540 Watt Mono Half-cut Solar Panel from PowMr features multi busbar technology, significantly enhancing light trapping and current collection capabilities, leading to improved power output and module reliability. The panel is constructed with high-quality materials that guarantee a 10-year warranty on materials and technology and a 25-year linear power output warranty. It excels in low light conditions due to specialized solar cell technology, ensuring excellent power generation even under suboptimal lighting. The half-cut cell structure and unique circuit design offer reduced shade loss and superior thermal spot resistance. This solar panel is designed to withstand harsh environmental conditions such as coastal areas, farms, and deserts, and includes an anti-reflective glass surface for minimal losses due to dirt and dust. These features make it a robust choice for various demanding applications.

Most popular related searches

mono solar panel

solar cell system

power generation

solar panel design

clean power generation

concentrated solar

concentrated solar power generation

power performance

Rate Maximum Power( Pmax/W): 540
Module Efficiency(%): 20.9
Open Circuit Volatge(Voc/V): 49.55
Short Circuit Current(Isc/A): 13.89
Voltage at Pmax(Vmp/V): 41.62
Current at Pmax(Imp/A): 12.98
Power Tolerance: 0~+5w
Temperature Coefficent of Isc: +0.046%℃
Temperature Coefficent of Voc: -0.276%℃
Temperature Coefficent of Pmax: -0.350%℃
Dimension: 2279×1134×35mm
STC: Irradiance1000W/㎡CellTemperature25℃AM1.5

01 Multi Busbar Technology

Better light trapping & current collection to improve, effectively improve the module's power output & reliability. Made of first-class material which ensures 10-year warranty for material & technology and 25-year linear power output warranty.

02 Low Light Performance

The special solar cell technology has excellent low light power generation performance.

03 Better Resistance To Hot Spots

The use of half cut cell structure & special circuit design is less shade loss, with better temperature coefficient & thermal spot resistance ability.

04 Adaptability To Harsh Environments

High performance materials are suitable for coastal, farm, desert and other harsh environmental conditions, glass surface is anti-reflective & easy to clean, minimizing power generation losses caused by dirty & dust.
