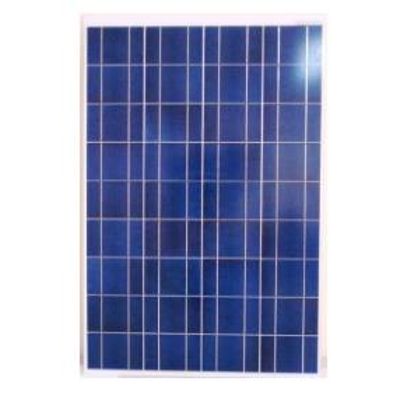

Surana - Model SVL-M30 - Mono/Multi-Crystalline PV Module

Electrical Parameters: Nominal Power – Pmax ( W ) 30. Voltage at maximum Power - Vmp (V) 17.4. Current at maximum Power - Imp (A) 1.73. Open circuit Voltage - Voc (V) 21.4. Short Circuit Current - Isc (A) 1.98. Maximum System Voltage 1000 VDC. Temperature Coefficient – Pmax -0.45%/°C. Temperature Coefficient - Voc -0.035%/°C. Temperature Coefficient - Isc 0.05%/ °C. Solar Cells per Modules - Unit 36 (12 x 3 Matrix). Parent Solar Cell Size and Type 156mm, Mono/Multi-crystalline.
