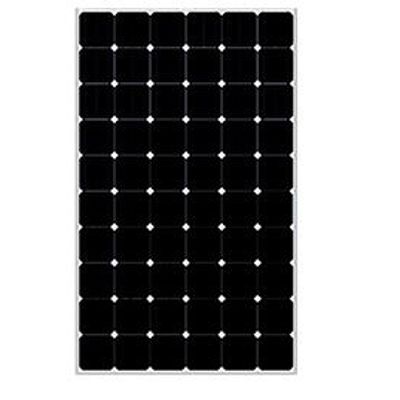

Hermes Solar - Model HS-MB1/325 -Monocrystalline Photovoltaic Module

SHARE

Cells per Module 72 Cells (6x12). Cell Type Mono-crystalline Silicon. Module Dimension (L x W x H) 1954x990x38 (mm). Module Weight 21Kg. Frame Anodized Aluminum (Black frame available by customer order). Front Glass 4 mm Tempered Glass. Junction Box IP66/IP65, 4mm². Cable Length(+/-) 1000mm.

Most popular related searches
monocrystalline photovoltaic module
junction box
monocrystalline photovoltaic
crystalline silicon
photovoltaic module
cell operating temperature
photovoltaic

  • Item Unit HS-MB1/325
  • Max. Power (Pmax) W 325
  • Open circuit voltage (Voc) V 46,1
  • Short circuit current (Isc) A 9,13
  • Max. Power voltage (Vmp) V 37,8
  • Max. Power current (Imp) A 8,6
  • Module efficiency % 16,8
  • Power tolerance W 0~+4,99
  • *STC (Standard Test Condition): 1000W/m2, AM 1.5, 25˚C

Permissible operating conditions

  • Temperature range -40 to +85 ºC
  • Maximum system voltage 1,000V DC(IEC), 600V DC(UL)
  • Maximum surface load cap 5,400Pa
  • Maximum hailstone impact (diameter / velocity) 25mm / 23m/s
  • *NOCT (Nominal Operating Cell Temperature): 800W/m², 20˚C, wind speed 1m/s

Thermal Characteristics

  • Rating   Unit Value
  • NOCT   ºC 47±2
  • Temperature coefficient ISC %/˚C 0,04
  • VOC %/˚C – 0,32
  • PMAX %/˚C – 0,44

Packing Specifications

  • Packing box dimension (L x W x H) 1980 x 800 x 1150 (mm)
  • Number of modules per pallet 20
