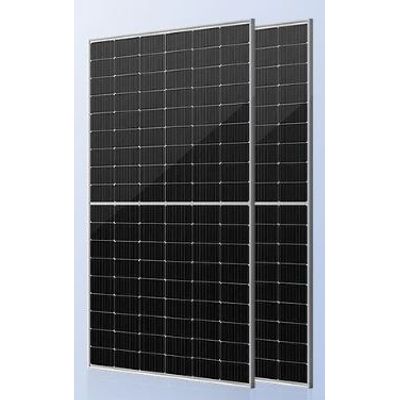

CEEG - Model CSUN 415-108M - Monocrystalline Solar Panel

Certified to withstand high wind and snow loads: Withstands high winds (2400 Pa) and snow loads (5400Pa-7200Pa). Reliable in harsh outdoor environments, ensures longer lifespan;

Weak light condition: Excellent performance under weak light conditions, Pre-installed bypass diodes minimize power drop caused by shade and ensure performance in low-light environments;

Passed salt mist & ammonia corrosion, blowing sand, and hail testing: Comprehensive protection against salt spray, ammonia corrosion, and wind and sand. Resists hail with a diameter of 0.98" (25mm) and an impact speed of 51.2mph (23m/s);

Good temperature: A good temperature coefficient enables better output in hot climates.

CEEG 415 Watt Solar Panel Features

• 24-bus bar solar cell configuration
• Mono PERC Technology
• Lightweight anodized aluminum frame
• High Transmission, Toughened low iron glass, 3.2 mm
• Plug-and-play junction box
• Industry-standard quick-connect cables work in series or in parallel
• Certified to withstand challenging environmental conditions
• Excellent low-light performance on cloudy days, mornings, and evenings

Installation

• Easy installation and handling for various applications (high-end off-grid and mobile applications)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
• Compatible with on-grid and off-grid inverters

Warranty

• 25-year limited power output

CEEG 415 Watt Solar Panel Built-in Components

• Panel leads (pair)
• IP65-rated waterproof junction box
• IP67-rated waterproof solar connectors
• Bypass diodes built in the junction box

CEEG 415 Watt Solar Panel Specifications

• Maximum Power(Pmax): 415W
• Maximum Power Voltage(Vmp): 41.8V
• Maximum Power Current(Imp): 11.1A
• Open Circuit Voltage(Voc): 34.87V
• Short Circuit Current(ISC): 11.84A
• Maximum System Voltage(Vmax): 1000/1500VDC
• Temperature Range: -40°C ~ 85°C
• Max Series Fuse Rating: 25A
• Weight: 21.5 Kg
• Dimensions: 1724*1134*35mm

• Brand : CEEG
  Model Number : CSUN 415-108M
  Maximum Power : 415W
  Size : 1724*1134*35mm
  Module efficiency : 21.3%(High Efficiency)
  Material : 108(6×18), 182×91mm
  Certificate : TUV/CE/ISO/INMETRO
  Weight : 21.5KG
  Material warranty : 12 Years
  Power output warranty : 25 Years
