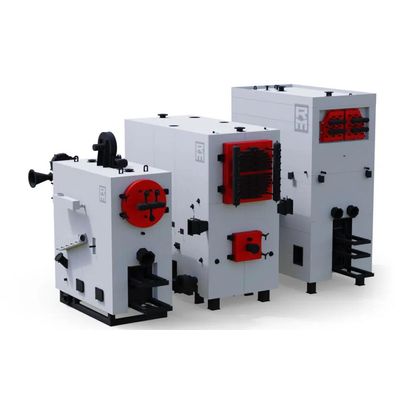

Rapla Metall - Moving Grate Biomass Boilers
FromRapla Metall OÜ
Rapla Metall produces moving grates combustion chambers and hot water boilers with output range from 0,3MW to 5 MW. Moving grates furnaces are provided for hot water, steam or thermal oil boilers operating in heating systems.
Most popular related searches
hot water boiler
hydraulic power unit
thermal oil boiler
combustion chamber
boiler operation
boiler operator
biomass boiler
hydropower
furnace
ashing furnace
- High efficiency and low emissions
- Strong and reliable solution
- Water cooling of grates
- Fuel level control with IR sensors
- Cast and stacked masonry
- Automatic cleaning of heating surfaces
- Low maintenance costs
- Reliable rated power considering the different fuels used and their moisture content
- Long life
- Quick and easy installation thanks to a standardized solution
- Horizontal hot water boiler 6 bar 130 º conforms to PED 2014/68/EU
- Moving grates furnace equipped with fuel feeder
- Grates with a minimum chromium content of 26%
- Cast iron side plates with a minimum chromium content of 26%
- Primary air divided by combustion zones
- Primary air fan with frequency controller
- Secondary air /flue gas recirculation fan with frequency controller
- Recirculation mixed with secondary air
- Primary and secondary air ducts and regulating flaps with actuators
- IR level sensors to maintain the fuel level of the grates
- Level sensors and camera cooling
- Preheating of the primary air by cooling the outer combustion chamber insulation lines
- Refractory insulation, masonry and bricks
- Hydraulic ash scraper under the grate for automatic ash removal
- Hydraulic power unit for furnace grates, ash scraper. Shutoff valves, hydraulic pipelines
- Hydraulic cylinders for furnace grates, ash scraper
- Automatic smoke tube cleaning system, pneumatic 8 bar
- Optional: water-cooled standing and moving grate bar carriers
