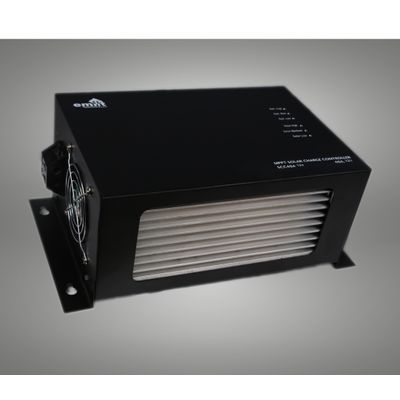

EmiitModel SCC40A12V - MPPT Solar Charge Controllers

FromEmiit
SHARE

40A MPPT Solar Charge Controller is cost effective product to use in various Solar Charger applications. The 40A MPPT solar charge controllers can be fitted inside inverter units to convert the inverters as solar inverters. With innovative maximum power point tracking technology, Emiit MPPT ensures maximum performance from your solar array at all times and in all weather conditions. The MPPT can yield an energy gain from your PV array up to 30% compared to PWM charge controllers.

Most popular related searches

System voltage: 12V
Nominal charge current: 40A
Float charge: 13.8V(25°C)
Boost charge/activation: 14.4V(25°C),2h/battery voltage <12.3V
Max.PV voltage: 50V
Min.PV voltage: 20V
Max.PV input power: 500w
Stand by power consumption: <100mW
Temperature compensation: –24mV/K
Power conversion efficiency: Upto 93%
Grounding: Negative grounded
Ambient temperature: –40°C to +50°C
Battery type: Lead acid (GEL, AGM, flooded)
Max.wire cross section: 35mm2
Dimensions (WxHxD): 300x122x170mm
