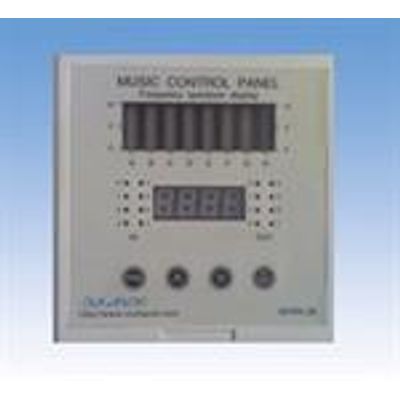

Functions: Three control modes
1.Audio signal control mode
When COM and X0 is connected, the controller will automatically transfer the audio signals from CD, VCD, MP3 into DC 0~10V voltage signals to control the frequency converters and the output signal and the size of the input audio signal is into a linear relationship. (8 channel outputs)
2.Sequence control mode
When COM and X1 is connected, the controller will execute the water types in the order they are defined, from the start position (Function No.03) to the end position (Function No.04). This will be circulating run until the control signal (COM and X1) is off.
3.Combination control mode
When COM connects with one point or more points of X2~X7, the controller will execute the combinations according to the addresses of combination switch instruction. X2~X7 correspond to 1, 2, 4, 8, 16, and 32 according to binary algorithm, total permutations and combinations are 64 groups. The algorithm of water types store addresses :( one
