Measurlogic - Model DTS 307 MCM -Multi Channel AC Submeters

The series is based on the ultra-compact DTS 307 3 channel 208V-480V sub-meter.

It is offered in 2 formats:

• Pre-wired with 1.5ft voltage pigtails on a DIN rail to be mounted into a 3rd party enclosure

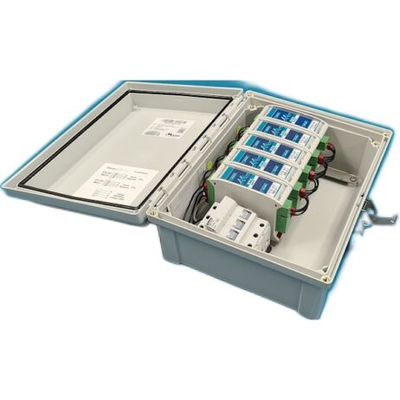

• Wall-mounting, non-metallic weatherproof enclosure adder with voltage terminals or fuses.

It is available with serial or ethernet communications with Modbus or BACnet protocols

The DTS 307 can be configured to operate as a Bi-directional NET meter. The DTS 307 is SunSpec Alliance certified and easily integrates with Building Automation Systems and Energy Monitoring Software. All the DTS Series is designed and manufactured in the USA and complies with the Buy American Provisions of ARRA Section 1605.

• 9, 12, 18 or 24 Current Circuits(3 x 3 phase, 4 x 3 phase, 6 x 3 phase & 8 x 3 phase inputs)
• Pre-wired (Voltage and Communications) on an easy to mount DIN rail
• ANSI C12.20 – Revenue Grade
• UL Listed, CE, FCC Part 15 Class B
• BTL Listed, SunSpec Alliance certified
• RS-485: Modbus RTU and BACnet MS/TP protocols loaded as default, (field selectable)
• Ethernet: Modbus TCP and BACnet/IP
• 208 – 480Vac L-L 4 Wire
• CT inputs can be field selectable for 333mV or Rogowski CTs (NO integrator required)
• 1 x digital output per DTS 307 meter (kWh Energy pulse output)
• Self powered OR 24 Vac / 12-24Vdc auxiliary power supply
• Bi-directional for renewable systems (NET metering)
• Wall mounting, lockable Weather-proof enclosure options
• kWh (Active Energy) Counter Display option
• Made in America

• Line powered single / three phase energy sub-meter
• Auto-topology detection
• Ultra-Compact DIN rail design
• UL Listed, CE, FCC Part 15 Class B
• ANSI C12.20 – “Revenue grade”
• BTL Listed, SunSpec Alliance certified
• 208-480 Vac (1P 2W, 1P 3W, 3P 4W)
• RS-485 connectivity – Modbus RTU and BACnet MS/TP (field selectable)
• Ethernet connectivity – Modbus TCP and BACnet/IP
• Interfaces with 333mV or Rogowski CTs (field selectable)
• Bi-directional for renewable systems (NET metering)
• Color coded, pluggable connectivity
• User configurable using DTS Config software
• User-definable Modbus register area
• Optional Low Voltage AC/DC Auxiliary (12-24Vdc or 24Vac)
• Optional single Pulse Output (kWh)
• kWh (Active Energy) Counter Display option
• Designed and Manufactured in the USA.
• Complies with the Buy American Provisions of ARRA Section 1605
• Also available in a OEM board level format
