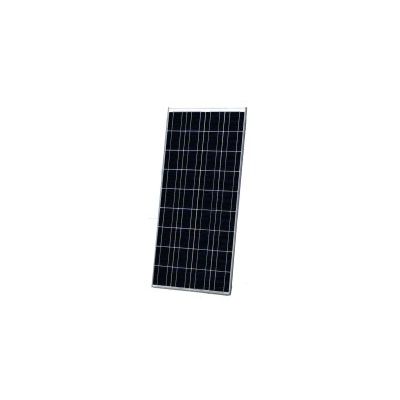

SHARP - Model NP-I20T1 - Multi-Crystalline Silicon Photovoltaic Module

SHARP`S ND-120T1 photovoltaic module is designed for large electrical power requirements. Based on the technology of crystal silicon solar cells cultivated for over 40 years, this module has superb durability to withstand rigorous operating conditions and is suitable for grid connected systems.

Most popular related searches

multi-crystalline silicon solar cell

silicon solar cell

photovoltaic module

crystalline silicon

solar cell

crystalline silicon photovoltaic

multicrystalline solar cell

multicrystalline photovoltaic module

photovoltaic

bypass diode

High-power module <120W) using 155mm square multi-crystal silicon solar cells with 12.1% module conversion efficiency.
Photovoltaic module with bypass diode minimizes the power drop caused by shade.
Anti Reflection Corting and BSF (Back Surface Field) structure to improve cell conversion efficiency.
Using white tempered glass, EVA resin, and a weatherproof film along with an aluminum frame for extended outdoor use
DC 12V system
Output terminal: Lead wire with waterproof connector

Cell : Multi-crystalline silicon solar cells. 155mm square
No. of cells and connections : 36 in series
Application : DC 12V system
Maximum system voltage : DC 540V
Series fuse rating : I0A
Maximum power : 114 W(Min.)
Dimensions : 1499 x 662 x 46mm
Weight : 14kg
