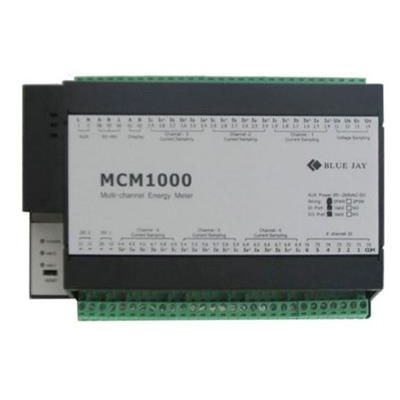

Model MCM1000 - Multi-Function Power Meter
MCM1000 series meter is 2017 year new public products it design for sub-metering project. integrate 6pcs three phase energy meter(MCM1300) or 18pcs single phase energy meter(MCM1100) inside with different MCU for energy data collect. Can maximum reduce the hardware investment of electrical management or building energy metering project.
Most popular related searches
three-phase energy meter
single-phase energy meter
multifunctional power meter
energy meters
energy meter
energy metering
energy data acquisition
energy data
building energy
power meter
- Class 0.2/0.5 basic parameter and class 1 for active energy
- 6 channels three phase or 18 channels single phase metering
- Current measuring .../5 or .../1 A
- Standard 35mm - 8 module DIN rail mounting
- Provide RS-485 MODBUS-RTU Communications
- Optional 6DI / 2DO for signal detect and remote control
- Optional external connection LCD screen 96*96mm panel mount
- Accept customization design
- BJ-MCM1300
Basic parameter for 6 channels three phasewith RS485 port
- BJ-MCM1310
Advanced parameter for 6 channels three phase
With 6DI/2DO
With RS485
With LCD screen panel unit
- BJ-MCM1100
Basic parameter for 18 channels single phase
with RS485 port
- BJ-MCM1110
Advanced parameter for 18 channels single phase
With 6DI/2DO
With RS485
With LCD screen panel unit
