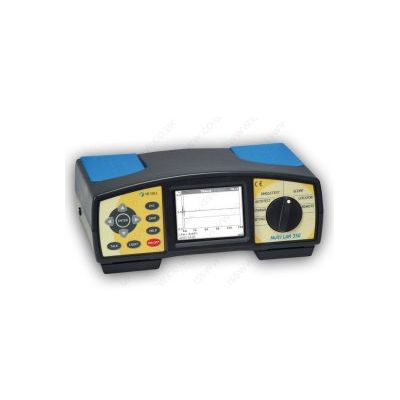

Metrel - Model MI2016 ST - Multi LAN Tester Standard Set
High performance, multifunction test instrument for LAN cabling verification. Instrument Multi LAN 350. Remote unit Multi LAN 350. Permanent Link adapter, 2 pcs. Chanel Link adapter, 2 pcs. Locators (#1 ... #4), 4 pcs. Attenuation calibration module. Power supply adapter, 2 pcs. Headphones set, 2 pcs. Carrying bag, 2 pcs. PC SW LAN Link with USB and RS232 cables. 12 x 1.5 V NiMH rechargeable batteries, type C. Instruction manual. Calibration certificate.
Extensive database of Autotests incorporated into the instrument`s memory allows quick LAN cabling verification up to CAT6 (ClassE) in accordance with international standards EN50173, TIA/EIA 658B, ISO/IEC 11801, etc.
- Complete selection of test functions combined with easy to understand user interface makes Multi LAN 350 a good choice for LAN cabling companies and subcontractors as well as for IT administrators for troubleshooting purposes.
- Apart from inbuilt Autotests there is a possibility to perform Single tests. Professional TDR with integrated TDR NEXT function enables pinpoint distance to the fault determination.
- Connectivity with UTP, STP, ScTP, FTP cables is further enhanced with a complete selection of adapters for Channel Link and Permanent Link measurements.
- Tabular or graphic presentation of test results.
- Set MI 2016 PS comprises of two Multi LAN 350 instruments that enable fast execution of measurements and double memory space for storing test results.
Windows compatible LAN Link software package enables test results downloading and creation of a test report.
Dimensions (w x h x l): 265 x 110 x 185 mm
Mass (without accessories): 2.1 kg
