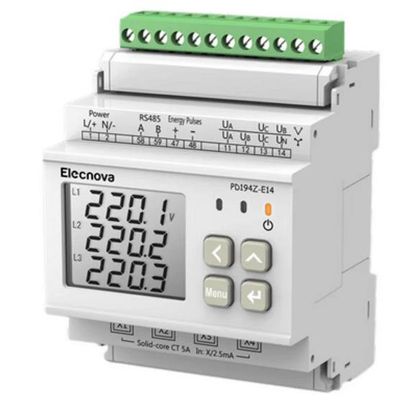

Elecnova - Model PD194Z-E14 AC - Multi-Load Power Meter

SHARE

PD194Z-E14 AC Multi-load Power Meter CT operated with Pulse / RS485 RTU. Measurement Capacity: Supports up to 12 single-phase circuits or 4 three-phase circuits, with or without a neutral connection. Auxiliary Power Supply: Operates on a range of 80 to 270 Vac.  Connections: Indirectly connects to current transformers via RJ12 connectors and/or voltage transformers. Accuracy: Active energy measurement with an accuracy class of 0.5S.

Most popular related searches
power meter
current transformer
energy measurement
power monitoring
power factor

Physical Characteristics:

  • Mounting: DIN rail mounted, occupying 4 modules in width.

Communication Capabilities:

  • Transmitters: Equipped with active energy pulse transmitters.
  • Modbus Port: Fully programmable for parity, speed, and frame settings.

Additional Modules:

  • Expandability: Options to add Lora, GPRS, Modbus, NB-IoT communication modules, and relay outputs on the side of the box.

Standards and Certifications:

  • Conformity: Complies with CE, RoHS, and REACh standards.

Multi-Load Measurement: Provides detailed analysis of electrical quantities such as:

  • Active and reactive energies (both imported and exported)
  • Voltage
  • Current
  • Active, reactive, and apparent powers
  • Power factor
  • Frequency
  • Demand
  • Extreme values
  • Unbalances
  • Harmonics up to the 31st rank
  • And many more…
  • Compact Design: Efficiently measures 4 three-phase or 12 single-phase circuits within a 4-module width.
  • Remote Monitoring: Allows viewing of measured parameter data through a free, remote software.
  • High Accuracy: Ensures precise measurement with a class 0.5S for active energy.
