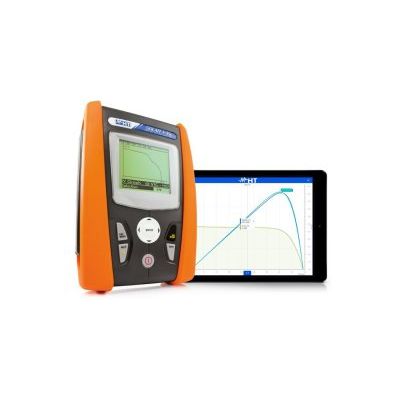

HT - Model SOLARI-V - Multifunction I-V Curve Tracer
Multifunction instrument for testing and verifying single-phase PV installations. SOLAR I-V has been designed to meet any requirement of photovoltaic installation testers. Further to providing the possibility of testing and measuring the efficiency of single-phase photovoltaic systems and also measures the I-V characteristic both of a single module and of module strings. Thanks to SOLAR I-V, the operator can test the photovoltaic system and, should it give a negative result, immediately identify the problems of the system in order to promptly solve them. SOLAR I-V is provided with the remote unit SOLAR-02 for measuring irradiation and temperature. The synchronization between main unit and remote unit, by radio-frequency (RF) wireless connection, guarantees the necessary simultaneity of measurements.
SOLAR I-V also manages a database of photovoltaic modules, which can be updated at anytime. The measured I-V characteristic is not affected by the resistance of the measurement cables, as it is carried out with the 4-terminal measuring method. The measured values, correctly reported at standard test conditions, are immediately compared with the values declared by the manufacturer to give the OK /NO result of the test. The operator must not do any calculation, the instrument carries out the comparison rapidly and automatically.
- DC/AC TRMS Voltage
- DC/AC TRMS Current
- DC power
- AC active power on single-phase systems
- Solar irradiation [W/m2] with reference cell
- Temperature environmental and module by means of probe PT1000
- Synchronization with remote unit SOLAR-02
- Display of real-time irradiation and temperature
- Use of relationship to maximize the DC efficiency
- Recording of parameters with programmable IP (5s – 60min)
- Internal memory for data saving
- Recalling results on the display
- Optical/USB port for PC connection
- Help on line at display
- Measurement of output voltage from module/string up to 1000V DC
- Measurement of output current from module/string up to 10A DC
- Measurement of solar irradiation [W/m2] with reference cell
- Measurement of temperature, automatic or by means of probe PT1000
- Measurement of output DC and nominal power from module/string
- I-V curve test with direct measurement of Irr/Temp parameters
- I-V curve test by using of SOLAR-02 unit
- Measurement of the resistance of photovoltaic module series
- Mechanical inclinometer for detect correct solar irradiation
- 4-terminal measuring method
- Comparison with standard conditions (STC 1000 W/m2, 25°C)
- Evaluation of testing result: OK / NO
- Management of up to 30 types of PV modules
- Internal memory for data saving
- Recalling results on the display
- Optical/USB port for PC connection
- Help on line on the display
- SOLAR-02 : Remote unit for irradiance/temperature
- KITGSC4 : Set 4 cables + 4 alligator clips
- KITPVMC3 : Set of 2 adapters MC3 compliance
- KITPVMC4 : Set of 2 adapters MC4 compliance
- Alligator clip black, 4 pcs
- HT4004N : Transducer clamp 10-100A DC
- HT304N : Reference cell for radiation measurements
- PT300N : PT1000 probe for cell temperature measurement
- M304 : Mechanical inclinometer
- TOPVIEW2006 : Windows software + optical/USB cable C2006
- BORSA2051 : Soft carrying bag
- ISO9000 calibration certificate
- User manual on CD-ROM
- Quick reference guide
- MPP300 : Accessory for checks on multi MPPT installations
- HT96U : Rigid clamp 1-100-1000A AC, diameter 54mm
- HT97U : Rigid clamp 10-100-1000A AC, diameter 54mm
- HTFLEX33D : Flex clamp 3000A AC, only for use with MPP300
- HT98U : Rigid clamp 1000A DC, diameter 50mm
- HT4004P : Rigid clamp 10-100A, only for use with MPP300
- HP30D1 : Rigid clamp with wide jaws up to 1000A DC
- SP-0400 : Set of straps for use of meter on neck
- KITPVEXT25M : Set 2 4mm banana cables, Green/Black, 25m lenght
- 606-IECN : Connector with magnetic test lead
- VA400 : Rigid carrying case
- ACON3F4M : Adapter for connection of DC clamps to MPP300
- EMC 2004/108/CE Directive
- CE MARK
- IEC/EN60891
- IEC/EN61187
- LVD 2006/95/CE Directive
