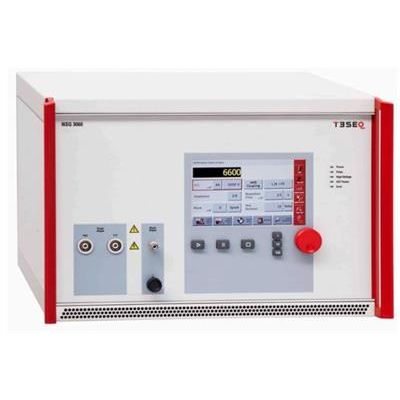

The Teseq (previously Schaffner) NSG 3060 EMC Immunity generator provides testing for EFT to 4.8kV, Surge to 6.6kV, 100kHz ring wave to 6.6kV and offers solutions for both CE mark, ANSI, and IEC testing. A2LA accredited calibration is included in the EMC rental equipment price. It includes both coupling methods associated with IEC and ANSI EMC testing standards. We also offer a variety of accessories available for rent, including the CDN 3083 series, allowing for enhanced testing capabilities.
This multifunction generator offers a user-friendly design to help streamline testing to EN/IEC 61000-4-4, EN/IEC 61000-4-5, EN 61000-4-12, ANSI C62.41, C62.45, and UL 1449. It offers a 7" color screen and easy to manage user-interface allowing for easy adjustments with the thumb-wheel. This system is often rented with the CDN 3061 (coupling decoupling network) allowing for single phase coupling up to 270V/16A.
