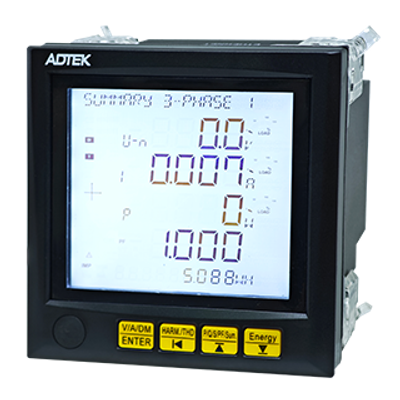

ADTEK - Model ADP-30 Series - Multifunction Power Analyzer
The ADP-30 Series Multifunction Power Analyzer from ADTEK is engineered to cater to advanced power monitoring requirements. Integrating state-of-the-art technology, it offers precise monitoring and management for both single-phase and three-phase power systems. The analyzer effectively measures key parameters such as voltage, current, power, frequency, and energy, enabling users to comprehensively manage power usage. Notably, it includes an RS-485 Modbus RTU interface for seamless integration with other devices, thus supporting intelligent monitoring and remote management. A significant feature is its ability to display power parameters alongside accumulated electricity costs and CO2 emissions, promoting efficient energy consumption and environmental impact assessment. The ADP-30 is versatile, accommodating diverse applications from commercial structures to industrial settings, with measuring capabilities up to the 31st harmonic. The device also supports Ethernet Modbus TCP for secondary communications, enhancing connectivity options.
ADP-30 series of multifunction power meters provide the power monitoring solution especially designed for users' requirement. This power meter combines advanced technology and diverse functions to provide comprehensive power monitoring and management.
With high accuracy measurement for single phase and three-phase system. Measuring parameters for voltage, current, power, power factor, frequency and energy, etc. So the user can control and get an overview of power usage status. Equipped with RS-485 Modbus RTU communication function to facilitate data exchange with other devices or systems to achieve intelligent monitoring and remote management.
In addition to displaying various power parameters, the power meter can also display accumulated electricity bills and CO2 emissions, to help users consider energy consumption and environmental impact more comprehensively.
The ADP-30 series multi-function power meter is a powerful and flexible tool suitable for a variety of application scenarios, including commercial buildings, industrial plants and residential areas. It provides a full range of power management functions, allowing users to manage power resources more intelligently and energy-savingly.
- Measuring 1P2W/1P3W/3P3W/3P4W system and the setting is programmable.
- Measuring balance unbalance loading system, including power parameters such as voltage, current, frequency, power factor, active power, reactive power, apparent power and energy.
- The number of sampling cycles is the number of cycles of the input frequency, and each cycle samples 128 points.
- CT input current can be set 1A or 5A by the user.
- The large-size, high-brightness LCD is easy and clear to read even under direct sunlight.
- Innovative meter AI calculation can perform automatic line adjustment and log it(See Note).
- Embedded 2MB non-volatile memory(NVM) which is with data and events recording function, can record for a long time.
- Ethernet Modbus TCP is optional for the second communication. And the dual-port design and daisy-chaining capability remove need for additional switches.
- Measuring voltage and current up to 31th individual harmonic, and can maintain power stabilty, and moreover, to avoid risk of equipment malfunctiion.
- Standard with time of use (TOU) function, which can perform power consumption with differential statistics according to the electricity consumption period.
- Standard with 2 sets of DI and 2 sets of DO, and is designed with a variety of I/O control functions to facilitate on-site monitoring and alarm needs.
- UL, CE, and FCC certification is in the process of application.
- Note: Auto wiring function is conditional, please refer to operation manual.
- Energy monitoring for motor control panel
- Energy monitoring for distribution board
- Energy management and power cost allocation
- Analysis of energy quality
