Multihull - Dual Tank Fuel System

All Components Needed To Upgrade Your Multihull To A Keenan Clean Vessel

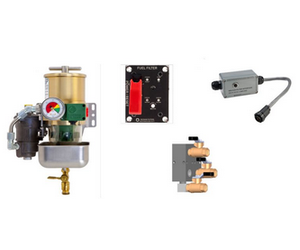

This limited time offer, combines all the components necessary to create a Keenan cross-feed dual tank fuel system specifically selected for your boat and needs.

Available using either the Dual Filter MK60DP system,  or the Single Filter MK60SP system, these upgraded packages are the easiest way to connect your standard installation isolated fuel systems.

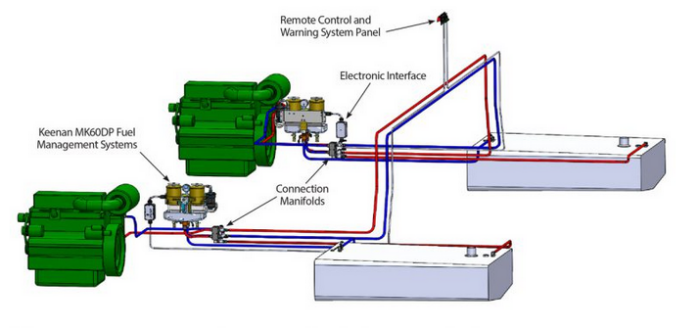

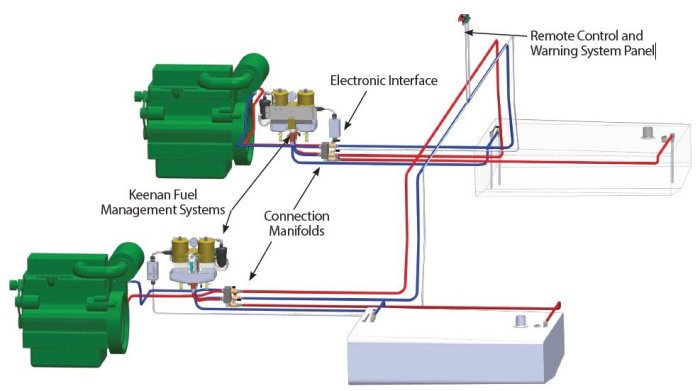

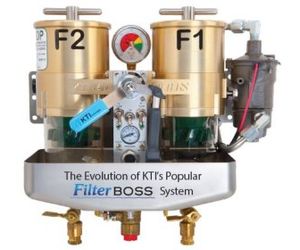

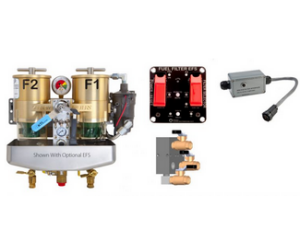

Option 1 - Multihull Dual Tank System Using Dual Filter MK60DPMK60DP Customized Upgrade Systems Can Include:

• 2 – MK60DP Dual Filter Systems

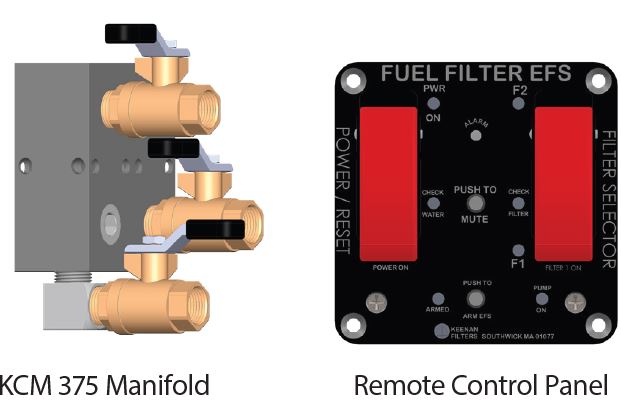

• 2 – KCM375 Port and Starboard Control Manifolds
• 2 – Electronic Interfaces
• 50’ – Interface Connections Cable

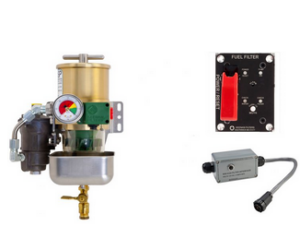

Option 2 - Multihull Dual Tank System Using Single Filter MK60SP

MK60SP Customized Upgrade Systems Can Include:

• 2 – MK60SP Single Filter Systems
• 2 – KCM375 Port and Starboard Control Manifolds
• 2 – Electronic Interface Connections
• 50’ – Interface Connections Cable

Option 3 - Multihull Single Tank System Using Dual Filter MK60DP

MK60DP Customized Upgrade Systems Can Include:

• 2 – MK60DP Dual Filter Systems
• 2 – Electronic Interface Connections
• 50’ – Interface Connections Cable

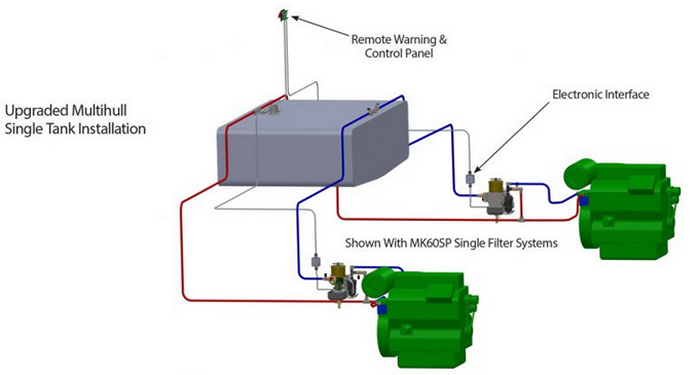

Option 4 - Multihull Single Tank System Using Single Filter MK60SP

MK60SP Customized Upgrade Systems Can Include:

• 2 – MK60SP Single Filter Systems
• 2 – Electronic Interface Connections
• 50’ – Interface Connections Cable

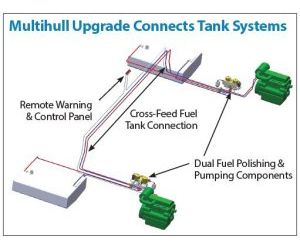

Combine Your Dual Tank Fuel System Into One For Maximized Safety & Management Options
If your multihull’s two fuel systems are isolated, you are not taking full advantage or having redundant fuel systems on board. Keenan’s fuel management systems combines your existing independent fuel system components into one flexible redundant system for enhanced safety, reliability and maintenance.

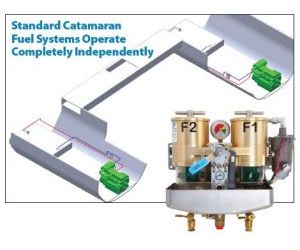

The Problem With Isolated Tanks
Typically, multihulls utilize independent engine systems with separate fuel tanks located within each hull. These isolated systems do not have the capability to cross feed fuel or operate either engine from either tank if needed.

• Dual fuel polishing and filtration keeps your motors running smoothly
• Cross tank fuel transfer for complete system control & load balancing
• Back-up fuel pressurization for safety
• Fuel filter cleaning or replacement during engine operation
• Operate both engines from one tank or operate one engine from both tanks

• Fuel Polishing - Ensures Clean Fuel To The Engines
• Operational Filter Cleaning or Replacement - Clean or Change Filters Without Shutting Down The Engine with Dual Filter System Upgrade
• Remote Warning - Alerts The Operator Before Problems Can Affect Engine Operation
• Top Loading Filters - Reduces or Eliminates System Bleeding After Filter Changes
• Back Up Fuel Pressure - In Case of Engine Fuel Pump Failure
• Quick System Bleeding or Priming - Eliminates Messy and Difficult-to-Reach Bleeding at Engine
• Lower Micron Pre-Filter - Provides Enhanced Engine Protection by Removing Smaller Contaminates
• System Testing - The Operator Can Check The System Integrity & Operation At The Dock

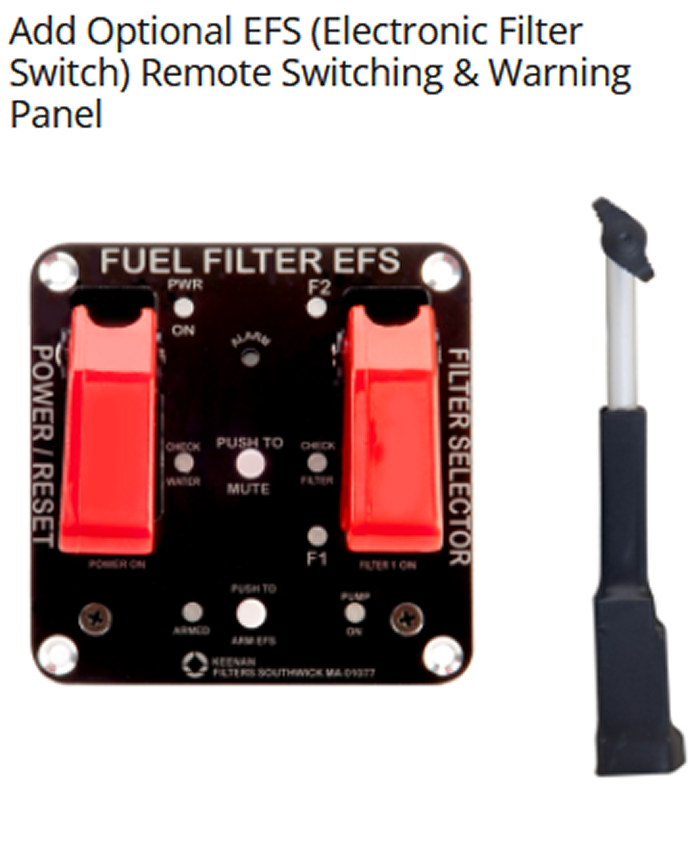

• Electric Filter Switch - Switch Filters From the Helm (Optional)
• Pressure Fill Offline Filters - Pressurization & Leak Check - Dual Filters Allow You To Check for Leaks Without Starting Motor
• Premium Fuel Filtration - All Keenan Systems use commonly Available Genuine Racor Filter Elements
