MultiJet - Bio-Burner

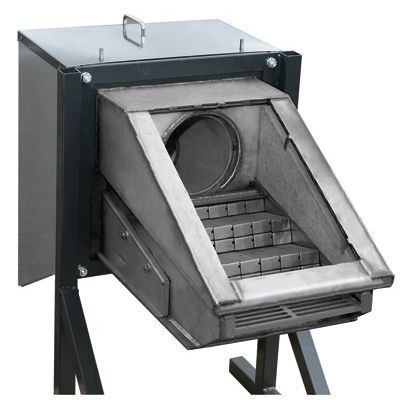

Ariterm bio-burners meet the modern safety and operation requirements of burning biofuels. MultiJet is a burner equipped with a mobile grating system, that is installed into the burner hatch of the boiler’s firebox. The burner grate is completely located inside the firebox. The feeder screw and the fuel storage system are chosen according to the type of fuel that will be used. The mobility of the grating can be regulated to be compatible with each different fuel type.
For several different biofuel types
Ariterm MultiJet bio-burner is designed for several different biofuel types. Suitable fuel types can be, for example: different woodchips, wood and peat pellets, sod peat and various grain fuels.
Mobile grating
MultiJet has a completely mobile grate, which allows the fuel to be efficiently mixed on the grating surface. The mobility of the grate especially improves the transfer of ash from the burner head to the boiler’s ash compartment, when processing materials that produce a high amount of ash.
ALWAYS CHECK THE COMPATIBILITY OF THE FUEL WITH THE BURNER FROM THE PRODUCT SUPPLIER
Control center
The burner is equipped with two (
MultiJet burner is controlled with the Arimatic control center:
- MultiJet 40 – 150 kW = AM151
- MultiJet 200 – 500 kW = AM500/AM1001
- MultiJet 700 – 1500 kW = AM1001, ask more information from the factory
