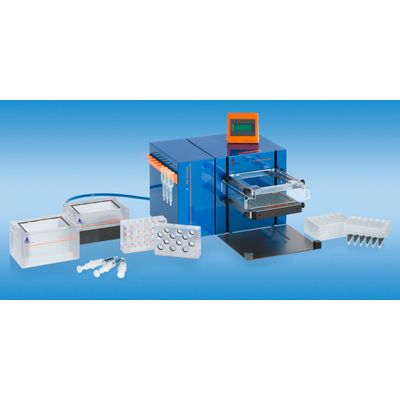

MultiMACS - Model Cell24 Plus - Semi-Automated Cell Separator

Speed
Simultaneous cell isolation from large sample volumes, such as buffy coats or Leukopaks®, and high sample numbers, like mouse samples.

Scalability
Parallel processing of one to 24 samples to fit every workflow, including few or small samples and high-throughput applications with the MultiMACS X.

Ease of use
Standard programs for all MACS Cell Separation strategies with step by step instructions that guide you through the separation protocols.

Versatility
Compatible with LS, LD, and Whole Blood columns and Multi-24 Column Blocks for high purity separations by positive selection, depletion, or untouched isolation of practically any target cell.

• Principle: Any positive or untouched isolation can be performed using MACS Cell Separation Reagents in combination with the MultiMACS Cell24 Separator Plus. Cells can be isolated from dissociated tissues, single cell-suspensions, PBMCs, or directly from blood products. StraightFrom® MicroBeads together with the MultiMACS Cell24 Separator Plus enable the fastest cell isolation directly from whole blood, buffy coat, LRSC and Leukopak® without density gradient centrifugation.
• Separations can be performed with the Multi-24 Column Block for simultaneous isolation of up to 24 small samples, or by splitting one large volume sample. Alternatively, up to 12 LS, LD, or Whole Blood Columns can be used in combination with the Single-Column Adapter.
• Background: The MultiMACS Cell24 Separator Plus contains a permanent 24-well magnet that induces a high-gradient magnetic field within columns. The field is strong enough to retain cells labeled with even small amounts of MACS MicroBeads in the columns. After transfer of columns to the Elution Chamber of MACS Elution Station, magnetically labeled cells can be eluted from columns via a small vacuum impulse.
• The touchscreen guides the user through the complete separation process. During cell separation the instrument moves the separation column block into and out of the magnet, thus allowing convenient processing of up to 24 samples in parallel. For elution of the positive fraction, the column block or single columns in the Single-Column Adapter must be transferred to the Elution Chamber. The vacuum-driven elution station ensures gentle elution of positively selected cells for excellent purity and maximal cell viability. The vacuum impulse guarantees simultaneous elution with identical parameters for every sample in every run. Pipetting steps during cell separation procedures are either performed manually with software guidance, or can be fully automated with the MultiMACS X.
• Level of automation: Semi-automated
• Footprint:
• MultiMACS Cell24 Separator: Size (w x d x h): 230 mm x 435 mm x 230 mm (9.1" x 17.1" x 9.1"), Weight: 11 kg
• MACS Elution Station: Size (w x d x h): 114 mm x 265 mm x 233 mm (4.5" x 10.4" x 9.2"), Weight: 4.6 kg
• Order number: 130-098-637

Whether following a positive selection or an untouched strategy, parallel separation is fast and provides reproducible results because all samples are treated identically. Different column options enable you to adapt to sample size, type, and separation strategy. The Multi-24 Column Block supports both positive selection and depletion. The Single-Column Adapter is compatible with LS, LD, or Whole Blood Columns. LS Columns are optimized for positive selection and depletion of strongly magnetic labeled cells. LD Columns are optimized for depletion and Whole Blood Columns for cell isolation directly from whole blood, bone marrow, and buffy coat.

Separation strategies
Positive separation:

• MACS MicroBeads and MicroBead Kits
• StraightFrom® MicroBeads
• MACSprep™ MicroBeads
• REAlease® MicroBead Kit

Untouched isolation: MACS Isolation Kits
Indirect MicroBeads: e.g. Anti-Biotin MicroBeads

Starting material

Sample type:

• PBMCs
• Whole blood
• Buffy coat
• Leukapheresis sample
• LRSC
• Bone marrow
• Single-cell suspensions from dissociated tissue or tumor
• Cultured cells (cell lines and primary cells)

Species:

• Human
• Mouse
• Rat
• Non-human primate
• All others possible with Indirect MicroBeads

Number of samples:

• Up to 24 samples with the Multi-24 Column Block
• Up to 12 samples with the Single-Column Adapter
