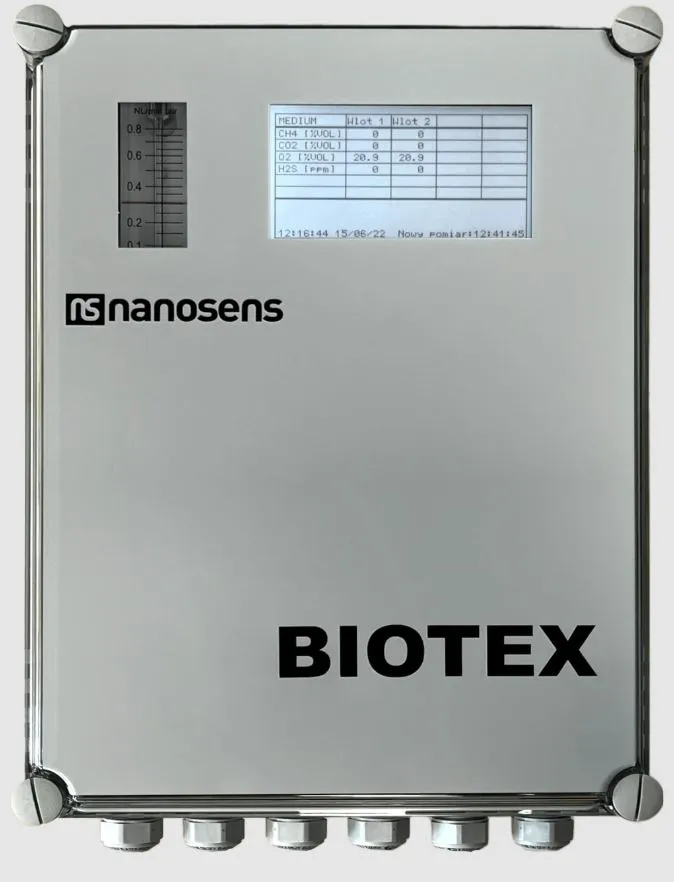

Model BIOTEX - MultiPoint Stationary Biogas Analyzer
BIOTEX MultiPoint is a stationary biogas and landfill gas analyzer that performs an independent control and measurement function, can be part of an extensive technological process supervision system, analyzes the parameters of biogas composition depending on the configuration, adapted to the recipient’s requirements. The biogas analyzer can be configured to work with one, two, three or four measuring points from which, along with successive measurement cycles, it will sequentially analyze the gas composition.
Field of use: Environment, Manufacturing
Industry sector: Biogas plants, Sewage treatment plants, Waste treatment plants
Substances: Ammonia – NH3, Biogas, Carbon Dioxide – CO2, Carbon monoxide – CO, Hydrogen – H2, Hydrogen sulfide – H2S, Methane – CH4, Oxygene – O2
application: biogas analysis
Application
BIOTEX MultiPoint is a stationary biogas analyzer that has been designed to work reliably and economically for many years. The device allows you to measure the parameters of biogas composition, both gas and physical. The analyzer works in a cyclical measurement system, making 24 measurements a day, while carrying out every measurement the sensor conditioning procedure to maximize their durability, thus reducing the operating costs of the biogas analyzer. The device also does not have any replaceable filters, so for the end user it is practically maintenance-free between periodic visits of a service technician.
Ergonomics
- maintenance-free
- large and legible display
- easily interpreted results
Measurements
- automatic measurements with a given cycle
- automatic sensor cleaning
- from 1 to 4 sampling points
Features
- self-tightness test
- saving critical states to memory
Form
- tight and durable EX class housing
- resistant to work in difficult conditions
- modifiable thanks to its modular structure
Communication
- 4-20mA current loop
- Modbus RTU
- PROFIbus DP
- and others
Options
- humidity measurement
- temperature measurement
- sample desiccant
