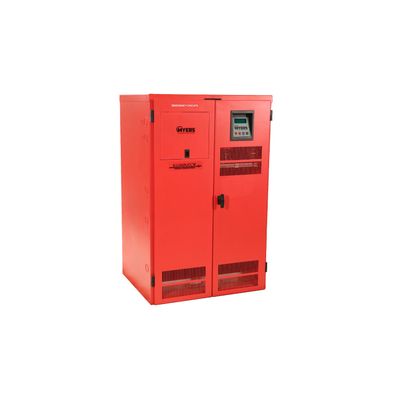

Myers EPS - Model Illuminator IE - Central Inverter System
FromMyers EPS
Myers EPS Illuminator IE is a central inverter system for emergency lighting designed for LED lighting loads. The system features a single-cabinet design for units up to 16.7kVA/kW, reducing footprint and installation costs. With a wealth of advanced communications features, the Illuminator IE offers unmatched convenience.
Most popular related searches
inverter system
central inverter
circuit breaker
inverter
inverter power
LED lighting
LED lighting system
remote circuit breaker
power inverter
lighting system
- 1.5kVA, 2.25kVA, 3.0kVA, 3.75kVA, 5.0kVA, 6.0kVA, 8.0kVA, 10.0kVA, 12.5kVA & 16.7kVA
- 1.5kVA/kW — 5.0kVA/kW: 47″ H x 30″ W x 25″ D
- 6.0VA/kW — 16.7kVA/kW: 76″ H x 48″ W x 25″ D
- Single Phase, Pure Sine Wave
- PWM/IGBT Technology
- Compatible with LED & All Other Non-HID Lighting Loads
- Micro-Processor Control
- User Programmable with Password Protection
- UL 924 Listed
- Automatic Event, Test and Alarm Log
- RS232 Communications Port
- Input Circuit Breaker
- 50ms Transfer Time
- Low Audible Noise
- Space-Saving, Single Cabinet Design
- 65kAIC Withstand Rating
- Warranty:
- Electronics – 1 Year Standard Includes All Parts
- Batteries – 1 Year Full, 9 Years Prorated
- Enhanced Communications
- Expanded Building Management Protocols
- BACnet or Modbus Communications Interface
- NEW IoT Connect Cloud Software
- Internal Maintenance Bypass
- Summary Alarm Dry Form C Contacts
- Status Monitoring Dry Form C Contacts
- Remote Meter Panel
- Output Circuit Breakers
- Factory Startup and Training
- Normally Off Output
- Output Trip Alarms
- Remote Summary and Remote Status Alarm Panels
- Onsite Services & Extended Warranty
