Enviroflex - Myking Electrode Holder & Ground Clamps

SHARE

Affords the most economical use of the electrode. Is comprised of only three parts. Incorporates double-screwed cable connectors to ensure minimum electrical resistance and reduce cable strain. Needs a minimum of maintenance, allows maximum utilization of man-hours. Does not need spring loaded electrode clamps. Is almost impossible to break in normal use. Has excellent handgrip and balance properties. Well insulated. Conforms to EN 60974-11.

Most popular related searches
grounding clamp

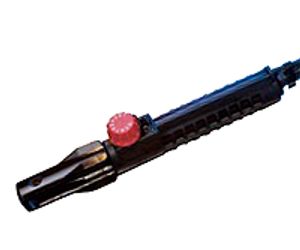

Greatly increases weld quality and operator effectiveness. The MYKING holders allow the operator to control the power supply - while still in an operating phase directly from the holder. It is no longer necessary to walk to the welding machine or to carry a separate remote control unit to the job. Current is simply and easily controlled by a regulating button attached to the holder - at the same time as welding tasks are carried out.

This MYKING Electrode Holder is suitable for use with any Thyristor controlled welding machine. Conforms to EN 60974-11

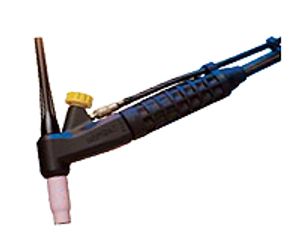

The MYKING TIG Torch is designed to be used in combination with the MYKING 200 electrode holder. This gives maximum flexibility and economy.

The MYKING TIG torch has excellent balance combined with a robust design. The MYKING TIG Torch has touch-start to initiate the welding arc, and can be used in conjunction with all welding rectifiers.

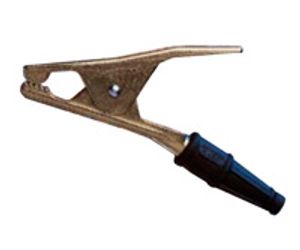

  • Solid design and construction.
  • All main parts in brass.
  • Parallel connectors for maximum grounding effect.
  • Proper ground contact reduces the possibility of functional failure while welding.
  • Double-screwed connectors to ensure minimum resistance and reduce cable strain.
  • Rubber cable protection against dampness and corrosion.
  • No springs are incorporated in the clamp.
  • Easy to use - even in restricted areas.
  • Max cable size: 4/0 (120 mm2)

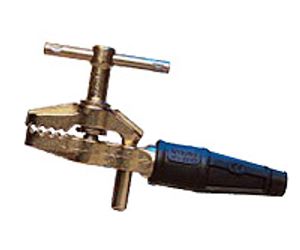

  • The clamp is produced in solid brass
  • No screw connections in the contact points which can loosen.
  • Double-screwed connectors to ensure minimum current resistance and reduce cable strain.
  • Rubber boot protection against dampness and corrosion.
  • Max. cable size: 1 (50mm2)
