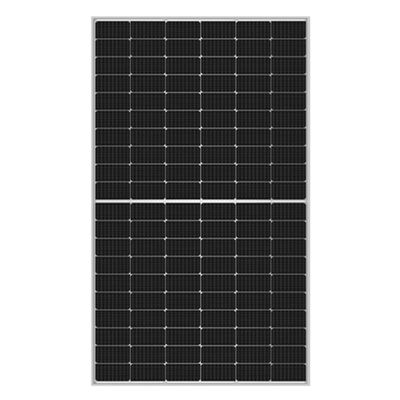

SEA FOREST - Model 380W TOPCON -N-Type Bifacial Double Glass Mono Solar Panels
The SEA FOREST 380W N-type Double Sided Glass Bifacial Mono Solar Panel is engineered for enhanced energy capture and efficiency in diverse environments. Utilizing 120 half-cut NTOPCon cells, these panels are specifically designed for bifacial applications, effectively harnessing light from both sides to maximize energy output. They feature a high efficiency mono silicon design, coupled with robust double glass construction for superior durability. The panels offer excellent performance in low-light conditions and have a ZERO light-induced degradation, which ensures long-term efficiency. With a focus on reducing the levelized cost of electricity, these panels operate at a high power and a system voltage of 1500V, offering savings on balance of system costs. They are engineered to withstand challenging climates, such as high humidity and dusty areas, thanks to a better temperature coefficient and passivated contact cell technology. Supported by a BiLinear Performance Warranty, these panels promise reliable, long-term performance backed by stringent testing and Munich Re insurance.380W 120 Half-cut Cells N-type Bifacial High Efficiency Mono Silicon Solar Panel;Additional Power Generation Gain;ZERO LID (Light Induced Degradation) ;Lower LCOE;Better Weak Illumination Response ;Better Temperature Coefficient ;Wider Applicability ;
- BRAND: SEA FOREST
- ITEM NO.: 380W TOPCON
- ORDER(MOQ): 1*20FT Container
- PAYMENT: T/T , L/C
- PRODUCT ORIGIN: China
- SHIPPING PORT: Shanghai
- LEAD TIME： 35-50days
Wider Applicability :
-
BIPV,vertical installation, snowfield, high-humid area, windy and dusty area
Better Temperature Coefficient :
-
Higher power generation under working conditions, thanks to passivating contact cell technology
Better Weak Illumination Response :
-
Wide spectral response, higher power output evenunder low-light settings like smog or cloudy days
Lower LCOE :
-
High power and 1500V system voltage,saving BOS cost
ZERO LID (Light Induced Degradation) :
-
N-type solar cell has no LID naturally, can increase power generation
Additional Power Generation Gain:
-
At least 30-year product life, more than 10%- 30% additional power gain comparing with conventional module
- 100% EL inspection ensuring defect-free modules
- Long term reliability tests
- Fully automatic facility and world-class technology
- Leader of n-type bifacial technology
- Cell Type : N-TOPCon Mono 166*83ｍｍ
- Number of Cells : 120枚（12*10）
- Dimension : 1768mm*1042mm*30mm
- Weight : 24KG
- Front /Rear Glass* : 2.0ｍ/2.0mm
- Frame : Anodized Aluminium
- Junction Box : IP68（3 diodes）
- Length of Cable* : 4.0mm²，300mm
- Connector : MC4 Compatible
- Mechanical load : 5400Pa
- Wind load : 2400Pa
- Insulation resistance : ＞40MΩ/m2
- Withstand voltage : 1500V
