Sun Sensor on a Chip (SSOC) is a two-axes and low cost sun sensor for high accurate sun-tracking, pointing and attitude determination. The device measures the incident angle of sun ray in two orthogonal axes, providing a high sensitivity based on the geometrical dimensions of the design.
nanoSSOC sun sensor is based on MEMS fabrication processes to achieve high integrated sensing structures.

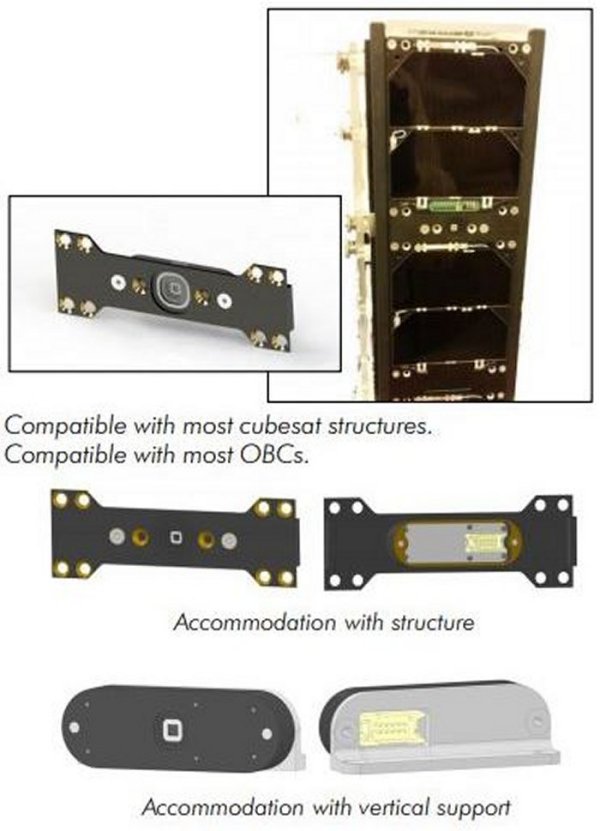

nanoSSOC-D60 has tiny size, low weight and low power consumption to be the perfect ADCS solution for nanosatellite platforms like Cubesats.
Technical Chracteristics:
Type: 2 orthogonal axes
- Field of View: ±60º
- Accuracy
- < 0.5 º (3sigma)
- < 0.1 º (precision)
- Electrical interface
- UART, I2C or SPI
- 10-pin micro-connector
- Power supply
- 3.3V / 5V
- < 23mA consumption

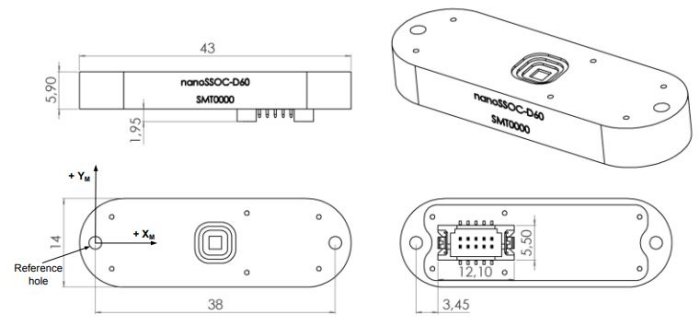

- Mechanical interface
- 43 x 14 x 5.9 mm
- 6.5 g
- Housing
- Aluminum 6082
- Black anodizing
Qualification Data and Flight Heritage:
- Operating Temperature: -30º to 85º Celsius
- Radiation:
- 30 kRad (gamma)
- 6 MeV 3000 kRad (protons)
- Random vibration: 14,1g @ 20-2000 Hz
- Shock: 3000 g @ 1-100 ms
It includes MEMS technology of Solar MEMS with flight heritage.
Electronic components are space-grade, and microprocessor has been tested according to space environment, and has flight heritage.
More than 100 units included in more than 20 missions.
