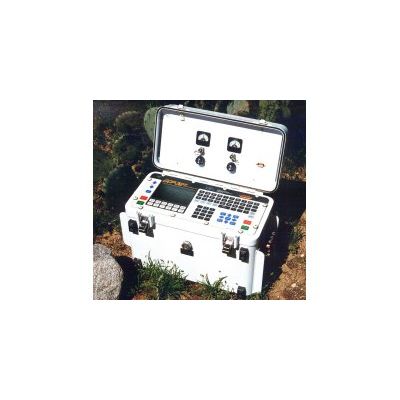

Zonge - Model NT-32 -NanoTEM Transmitter
The NT-32 embedded NanoTEM transmitter is the latest addition to the Zonge transmitter line. The transmitter is mounted in the card cage of a GDP-32II multifunction receiver.
- Output: NanoTEM® (bipolar currents to 3.5 A peak)
- 50% duty cycle
- 1.5 microsecond shutoff into 20 m loop (NanoTEM®)
- Lightweight, battery powered
- Full Computer-Control using RS-232C
Electrical
Input voltage: 10 to 14 VDC
Peak output current: 3.5 A
Current monitor output: 1V / A
Automatic over-current shutdown (set for 4.25 A)
MOSFET IGBT power output current switch
Automatic fault detection
Transmitter control from GDP receiver, XMT-series controller, or external computer with RS-232C port
Controls & Displays
Control and display on the embedded version is managed through the keyboard and display of the GDP-32II
Fault Conditions (Shown on the LCD display)
Over/Under Voltage
Over Current
Over Temperature
IGBT Failure
Output Jacks
Current monitor terminals (1 V/A)
Output current terminals
External battery: 10 to 14 VDC
Power connector: 3-pin military twist-lock
Power
External battery: 10 to 14 VDC
Power connector: 3-pin military twist-lock
Options
Waterproof case with sealed front panel and connectors
Case size: 22 x 28 x 18 cm (8.7 x 11 x 7.1”)
Weight: 5 Kg (11lb) (without batteries)
