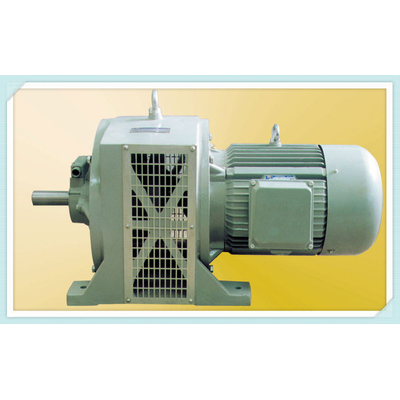

NER - Model YCT Series -Electric Motors

This machine is applicable to variable torque of the centrifugal pump and fan on load,use rotate speed adjustment instead of the valve open and close to control the flow and pressure, so as to achieve the effect of energy saving.The speed of the electromagnetic adjustable speed motor can be adjusted uniformlycontinuously and steplessly within the specified adjustable speed range with an output of rated torque. When the loading torque is changed during the running of the motor,the exciting current of the coupling can be reguated automatically by the speed negative feedback system of the controller so as to keep the output speed free of any variation basically.

• long life. Low price.
• Working conditions
• Ambient operation temperature: -15°C ~ +40°C;
• Altitude: Not more than 1000m;
• Rated frequency: 10Hz~ 50Hz/60Hz
• Rated Voltage: 380V/220V
• type of cooling: IC411
• Operation Mode: Consecutive (S1)
