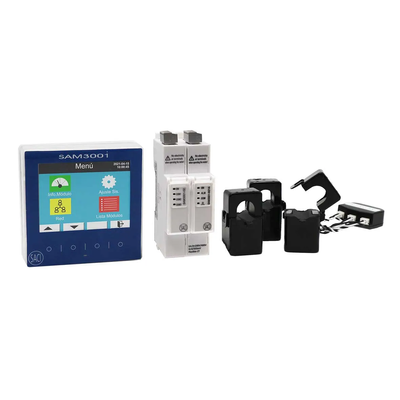

SACI - Model SAM3001 -Network Analyzer
The SAM3001 network analyzer is a new generation of electrical parameter monitoring product that can measure real-time electrical parameter, energy metering, power quality analysis, status monitoring and off-limit alarm functions. It can measure up to 32 three phase circuits or 96 single-phase circuits. *Self-powered version available.
Most popular related searches
network analyzer
power quality analysis
energy meters
power quality
energy meter
energy metering
power quality monitoring
electricity monitor
power quality meter
electrical power meter
- Multi-loop measurement
- Uo to 32 three-phase or 96 single-phase
- Easy installation
- One display module: Friendly interface
- THD V and I
- Harmonics uo to 31
- 4 quadrant measurement
- Voltage crest factor
- Current K factor
INPUT
- Rated voltage (Un): 3 x 230 / 400 V AC
- Overload: 1,2 Un – 2Un / 10s
- Impedance: > 1,7 M? / Phase
- Frequency: 45 – 65 Hz
- Burden: < 0,1 VA / Phase
AUXILIARY V.
- Rated range: 230 V ± 20 % AC
- Burden: < 5 VA
OUTPUT
- Relay output: 230 V 1,2 A AC
- Relay isolation voltage: 5000 V AC
- Pulse output width: 80 ± 20 % ms
- RS 485 port: Modbus RTU
- Baud rate: Up to 38400 bps programmable
- Comunicate isolation voltage: 4000 V AC
- SAM3000
