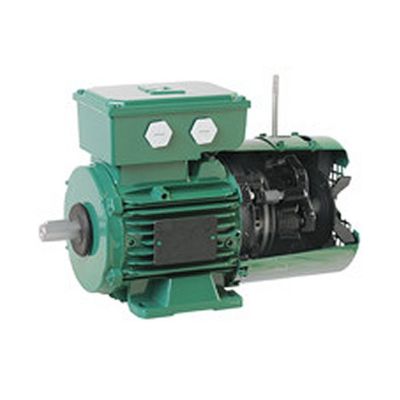

Nidec - Model FFB -Brake Induction Motors
FromNIDEC GPM Group
Failsafe brake operating when supply off (a braking force is applied when de-energized) on LS non IE, IE3 asynchronous three phase IMfinity motors range.
Most popular related searches
- Reliability and robustness.
- Performance and safety.
- Flexible conception.
- Supervision on brake duties : wear indicator microswitch, tightening and loosening indicator microswitch.
- Auto-return brake release systems : simple, lock off or remote lever.
- Variable speed construction : thermal protection , encoder and/or forced ventilation.
- Power supply frequency : Hz : 50 and 60
- Voltage : V : (0,25 to 5,5 kW) : 230 ? | 380 Y | 400 Y | 415 Y - 460 Y ou 400 ? (7,5 to 22 kW) : 380 ?| 400 ? | 415 ?| 690 Y - 460 ?
- Breaking torque : N.m : 4,5 up to 200
- Power : kW : 0,12 up to 22
- Frame size : mm : 71 up to 180
- Number of poles : 1 speed : 2 - 4 - 6
- Ingress protection : IP : 55
- Shaft type : steel
