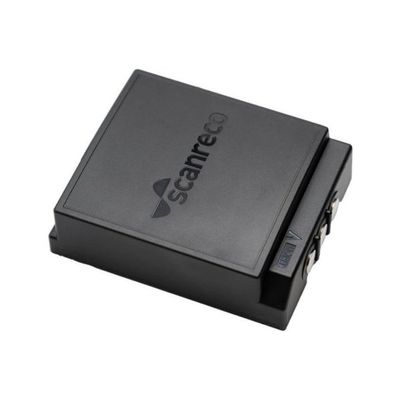

Scanreco - NiMH or Li-ion Batteries for the G6 Platform Transmitters

Up to 50 hours non-stop usage

The G6 Transmitters run on either NiMH (Nickel Metal Hydrid) or Li-ion (Lithium-Ion) batteries (you choose when designing the unit!)

Both G6 battery types have their advantages, which let the machine developer, owner and operator choose what works best for them regarding e.g., work environment, charging cycles and capacity. Both versions can be hot swapped and recharge fully in 2-3 hours (the G6 Mini Transmitter has room for two batteries and the transmitter will run on one at the time, or leave one in while another is charging).

NiMH

• Weight: 227 g | 0.5 lbs
• Protection Category: IP65
• Battery Capacity: 2000 mAh
• Operating voltage Nominal: 7,2V
• Charging time: 2h
• Charging cycles: >500
• Charging temperature: 10°C to +45°C |  50°F to 113°F
• Discharge temperature: -20°C to +50°C |. -4°F to 122°F

Li-ion

• Weight: 227 g | 0.5 lbs
• Protection Category: IP65
• Battery Capacity: 5100 mAh
• Operating voltage Nominal: 7,2V
• Charging time: 3h
• Charging cycles: >1000
• Charging temperature: 10°C to +45°C |  50°F to 113°F
• Discharge temperature: -20°C to +50°C |. -4°F to 122°F
