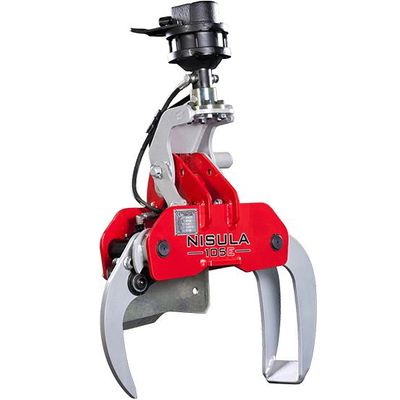

Nisula - Model 105E - Energy Wood Head for Small Cranes
From Energy Wood Heads
Nisula 105E combines a simple structure with top-quality materials. The structure is light and durable, which means that base machines equipped with a small crane can also be used for energy wood harvesting. The new, patented mechanical swing function makes the 105E flexible and effortless to use. The adapter kits available as accessories allow easy replacement of practically any timber grapple by 105E. No separate control systems or additional hosing is needed.
-
Most popular related searches
Product Details
USES:
- Energy wood harvesting
- Clearing bushes and trees from the edges of fields and forest truck roads
- Clearing thinning sites
- Clearing the edges of power lines
- Maintaining forest parks and felling trees in gardens
SUITABLE BASE MACHINES:
- Tractor equipped with a small crane
- ATV or mini-excavator
Technical Data
- Weight 52kg 115lb
- Grapple opening 500mm 20'
- Width (open /closed) 640/460mm 26/18'
- Height (open/closed) 690/480mm 27/19'
- Height in felling position 270mm 11'
- Single cut Ø (1 stem) 90-120mm 4-5'
- Operating pressure 150-210bar 2176-3046psi
- Required oil flow 8+ l/min 2+ gal/min
Operating Principle
- With the cutting blade attached, small stems can be felled and bundled on the ground. Felling and loading directly onto the loading space is also easy.
- With the cutting blade detached and the tilt mechanically locked, the head can be used like a regular grapple to load energy wood or other types of timber.
