SolarMaster - Non-Pressure Solar Collector

The design of the SNC solar collector is a culmination of nearly 15 years of feedback from installers and solar professionals all over the world and aims to meet their requirements with the following key features:

• Easy and Safety Packing design
• Stainless Steel 304-2B or 316L for inner manifold
• Zinc-Coated Galvanized Steel frames
• Extremely reliable inner manifold design, less soldering points
• All glass tubes have three absorb coatings with high heat efficiency
• Extreme High density Polyurethane Foam from Europe for            insulation layer
• UV stabilized components
• High wind load strength and High snow load strength
• Easy plug-in installation

Construction
The SNC solar collector is comprised of three main parts:

Evacuated Tube
Absorbs solar energy and converts it to usable heat.  Vacuum between the two glass layers insulates against heat loss.

Manifold
Insulated box containing the stainless steel inner shell and with the extreme high density Polyurethane foam for keeping the hot water.  The header with well design for glass tubes plug into.

Mounting Frame
Strong and easy to install with various options to match different mounting methods.

Operation

Step 1: The absorber coating on the inner glass tube absorbs sunlight and converts it into heat.
Step 2: The cold water inside the inner tubes be heated and become hot water even to steam. The new cold water will go down and hot water will go up automatically.
Step 3: A pump circulates water or heat transfer fluid through the manifold, carrying heat back to the storage tank.  Gradually throughout the day the tank is heated up.

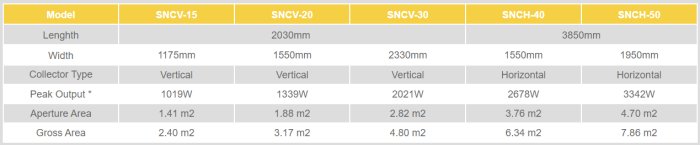

Component: Materials & Specifications
Evacuated Tubes
Material: Borosilicate 3.3
Tube style: Twin wall all glass
Dimensions: ∅58mm outer tube; ∅47mm inner tube;  1.8m length, 1.65mm outer tube wall thickness
Solar Absorber Coating
Material: Graded AL/N on AL
Absorptance: >92% (AM1.5);
Emittance: <8% (80 C)
Vacuum: P<5x10-5 Pa;
Heat loss: <0.8W/(m2 C)
Manifold
Outer Shell: Color Painted steel (standard) or Stainless Steel (optional) , 0.5mm thickness
Inner Shell: Stainless Steel 304-2B (standard) or 316L (optional) , 0.5mm thickness
Insulation Layer: Extreme High density Polyurethane Foam from Europe
Operating angle: 15-80 Degrees
Startup temperature: 0 C Degrees
Rubber Components
Material: HTV Silicone Rubber (UV stabilized)
Mounting Frame
Material: Zinc-Coated Galvanized Steel (standard) or Aluminum ally (optional)  or Stainless Steel (optional)
