Novatech - Reel Transporter

Innovation at Its Core

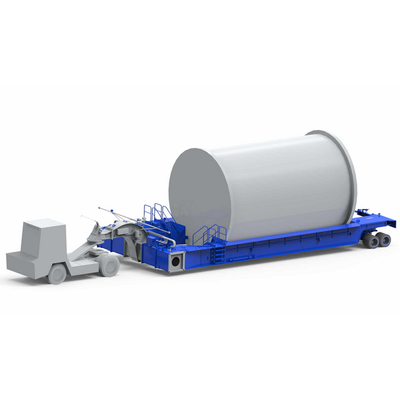

At the heart of the LIFTEC 100t Reel Transporter lies a lot of innovative features designed to streamline operations and enhance productivity. Its advanced telescopic capabilities enable smooth adjustments, allowing the transporter to lift different sized reels effortlessly. With a lifting capacity of 100,000 kg, this transporter stands as a testament to engineering excellence, effortlessly handling even the most massive reels with ease.

Flexibility Redefined

In the world of industrial equipment, adaptability is key. The LIFTEC 100t Reel Transporter offering unmatched flexibility to meet diverse operational requirements. From its telescopic frame construction to its hydraulic bogie system, every aspect of this transporter is engineered to adapt to the ever-evolving demands of the industry. Whether lifting, steering, or maneuvering, the LIFTEC 100t Reel Transporter excels in versatility, ensuring smooth integration into various workflow environments.

The operating principle of the Reel Transporter is incredibly well thought out and flexible. It can transport any typical reel ranging from 3000mm to 5500mm in diameter. To understand how simple and functional this device is, let’s check its working cycle.

Thanks to its telescopic construction, the RT can extend its beams, providing sufficient width to approach the reel at its place. The next step involves lowering it to the side movement position, and utilizing an additional 8 wheels and hydraulic cylinders, the beams approach the reel left on the ground. After the sides touch the edges of the reel, the load must be secured with a rear locking boom and then lifted to transport height. At this point, the weight of the load rests on 16 wheels, ensuring safe weight distribution on the ground. Unloading the reel is done in reverse order.

• Capacity: lifting capacity of 100.000 kg
• Dimensions: Total length of 16.850 mm, width varying between 8.420 mm and 6.300 mm
• Speed: Transport speed of 5 km/h with load, 25 km/h without load
• Working Cycle: Streamlined 11-step process for efficient operation
• Frame Construction: Welded box construction for durability and stability
• Hydraulic System: Advanced hydraulic block for lifting and steering
• Electrical System: 24 VDC voltage with CAN bus control system
• Bogie Construction: Hydraulic bogies with mechanical swing for enhanced maneuverability
• Brakes: Pneumatically controlled drum brakes for safety and control
• Working Lights: 11 LED lights for optimal visibility in all conditions
• Surface Treatment: SFS4962 PUR coating for corrosion resistance
• Towing Tractor Requirements: Compatible with standard towing tractors, ensuring seamless integration into existing fleets
