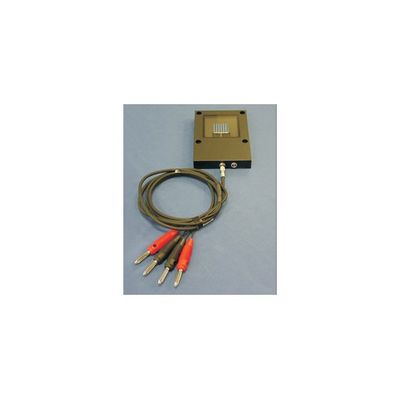

Abet - Model 15150 - NREL Calibrated Cell Used For Calibration Transfer
The Abet Technologies solar reference cell is a precision instrument for the determination of solar simulator irradiance levels. The sensor is a mono-crystalline silicon solar cell having an area of2x2cm(4cm).The back of the solar cell is attached to the device in such a way that a good heat transfer to the device housing is guaranteed. Below the solar cell a Pt100 RTD temperature sensor is mounted to allow monitoring of device temperature. The device is not shunted allowing the whole IV-curve to be measured. The solar cell is protected by a high quality fused silica window, assuring spectral sensitivity over a 320 -1100 nm range.
Each reference solar cell is delivered with a calibration report showing the IV-curve plot and the following parameters: Isc, Voc, I, Vmpp, Fill Factor and Efficiency.
Standard Cells ship with a fused silica window. The 15150-KG5 models ship with a KG5 window. Other filter options are available. Please consult with us for other options.
