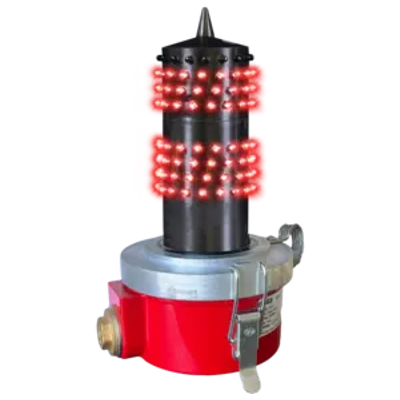

Obsta - Model Navilite-IR-FAA-120-240V -Red Fixed Low Intensity Light

FromObsta
SHARE

Mounting: 2 x 3/4" NPT threaded holes for conduit mounting and cable entry (One plug is provided as standard on the side. The cable gland is not supplied with the beacon but with the accessory, mounting bracket 113928).

Most popular related searches
mounting bracket
surge protection
alarm engine
  • L-810 type with IR
  • ICAO low intensity type A B with IR
  • Light part fully molded with 8 levels of leds
  • Redundant circuits for LED’s with de-coupled IR
  • Surge protection and alarm complying with FAA Engineering Brief 98
  • normally open and normally close both available for the alarm
  • no loose part during installation
  • this light could also be set up as L-810 (F) through internal dip-switches to mimic with our red or dual color medium intensity through a electrical pulse shared between lights on master/slave mode
