Power-Blox - Model PBX-200 -Off-Grid Energy Storage System

SHARE

The Power-Blox PBX-200 series delivers innovative solutions for off-grid and energy storage needs. Each unit is an intelligent energy cube, featuring an integrated lithium iron phosphate (LiFePO4) battery. The PBX-200 cube provides 200 watts of alternating current, generated either through solar units or other external sources such as wind, hydrothermal, biomass, or generators. Its modular and scalable design allows for seamless expansion to meet increased power demands. When standalone, each cube offers 200 watts of power. By stacking units, you can achieve up to 1.8 kilowatts, and using swarm grid technology, up to 10 kilowatts. The PBX-200 series is designed to be easy to use ('Plug and Power'), requiring no specific technical knowledge or maintenance. Technical specifications include DC voltage at 5V/12V, AC output voltage between 220-240V, a frequency range of 47-64 Hz, continuous output power of 200W, and maximum output power of 400W for three seconds. Available battery capacities are 1.3 kWh (LiFePO4) or 1.392 kWh (Lead/AGM). Ideal for households and small commercial businesses in rural or off-grid locations, the PBX-200 series offers a versatile and reliable power solution.

Most popular related searches

off-grid energy storage

off-grid energy

grid energy storage

energy storage system

lithium-iron phosphate battery

lithium iron phosphate

LiFePO4 battery

lead-acid battery

domestic solar system

The best of both worlds! Following this principle, the PBX series combines the simplicity of a solar home system with the power of a mini-grid.

The PBX-200 system is «Plug and Power», extensible and requires no configuration, specific know how or maintenance. It consists of intelligent energy cubes with an integrated lithium battery (LiFePO4). Each cube provides 200 Watt of alternating current and can be powered by a solar unit or from any external source (such as wind, hydrothermal, biomass, or a generator, etc.) to supply a household or small commercial business with electricity.

The Power-Blox PBX-200 series, the first product that was developed based on our swarm technology, is a revolutionary extensible energy system producing DC and AC from 200 Watt up to the Kilowatt range and serves as a portable socket for off-grid power needs.

Stand-alone: Power of 200 Watt
Stacking: Power of up to 1.8 Kilowatt
Swarmgrid: Power of up to 10 Kilowatt

The modularity of the PBX-200 allows a stepwise growth of generation capacity. Similar to building blocks, new PBX-200s are simply plugged in when the demand for electricity increases, without any interruption to the power supply and within a few minutes.

Modular, mobile, simple and affordable - the PBX-200 series is our answer to the challenges of rural and off-grid electrification.

Benefits at a glance

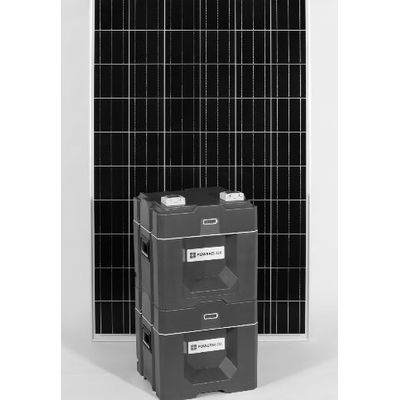

The PBX-200 is extensible by simply connecting two or more cubes
It's easy to use - «Plug & Power»
No engineering needed and maintenance free
A gateway enables fast and reliable real time data
The PBX-200 is ready for use within minutes and supplies renewable energy
With a weight of 20 kg (LiFePo4 battery) it's quite mobile

The PBX-200 is available as:

PBX-200 Pb with integrated lead acid battery
PBX-200 Li with lithium or LiFePo4 (iron phosphate) battery
PBX-200 Li/Le Lithium or LiFePo4 version without mains charging function

Product Features

MPP solar charger Swarm-/mini-grid enabled
4x stacking sockets
Unlimted scalability
Integrated stacking cable
Grid/generator connector (not in PBX-200 Li/LE)
12 V DC/3 A (cigarette lighter socket)
2 x USB output

Technical Data

DC voltage: 5 V / 12 V
AC continous output voltage: 220 - 240 V
Frequency range: 47 Hz ... 64 Hz
Continous output power: 200 W
Maximum output power for 3 seconds: 400 W
Capacity: 1.3 kWh Lithium / LiFePO4 Battery or 1.392 kWh Lead / AGM Battery
