Morningstar Corporation
Morningstar - Model SureSine -Off-Grid Inverter
The new SureSine off-grid inverter line is comprised of six new power output classes from 150-2,500W with 120 or 230V output and 12, 24 or 48V DC input options to cover a wide range of off-grid applications requiring a high-performance, industrial-grade, pure sine wave inverter.
Most popular related searches
off-grid inverter
pure sine wave inverter
grid inverter
sine wave inverter
inverter
charge controller
toroidal transformer
heating and cooling
They greatly expand our inverter offering that started with the acclaimed SureSine Classic. This new SureSine line has:
- Wireless Android and iOS utility apps for set-up and monitoring with remote devices, plus Bluetooth communications
- Multiple AC hardwire remote terminal options on selected models
- Industry leading safety, low-noise and high performance NRTL certifications for reliability and system conformance

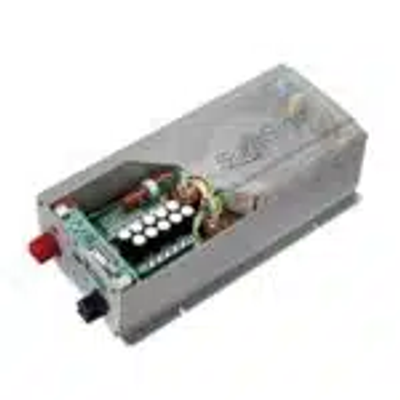

SureSine line uses industrial-grade build quality throughout, with models built around premium toroidal transformers for improved sinewave stability. Designed for the most demanding off-grid mission-critical installations
- Superior thermal performance with fanless design means higher reliability– for example, the 300W model doesn’t derate until 45 C and delivers 200W at 60 C. The small 150W model doesn’t derate even at 60 C! That’s outstanding performance in their power classes.
- Full communications capabilities include: RS485, USB, Ethernet, MS-CAN, Bluetooth while using industry-standard MODBUS protocol.
Inverter Functions: DC/AC conversion with pure sinewave
output
- Superior industrial-grade product design and manufacturing
- Engineered for system-level integration and communication with Morningstar charge controllers
- Communication ports: RS485 USB, Ethernet, MS-CAN, Bluetooth while using industry-standard MODBUS protocol
- Wireless Android and iOS utility apps included for set-up and monitoring with remote devices
- AC hardwire terminal option available on selected models (all power ranges and frequencies)
- Remote On/Off improves safety and enables control in inaccessible locations
- Auxiliary Power Output (700-2500 W models) provides power for an EIA-485 bus or other small DC loads
- Overbuilt, industrial-grade low-frequency transformer for improved sinewave stability
- Fanless convection cooling with extruded aluminum heat sinking, for maximum efficiency and reliability
- Status LEDs for both System and AC Sinewave output, to ensure reliable operation and notify of any system alerts
- Industry leading safety, low-noise and high performance NRTL certifications for reliability and system conformance
- Configuration can be achieved via manual DIP switch configuration or digitally programmable custom setpoints
