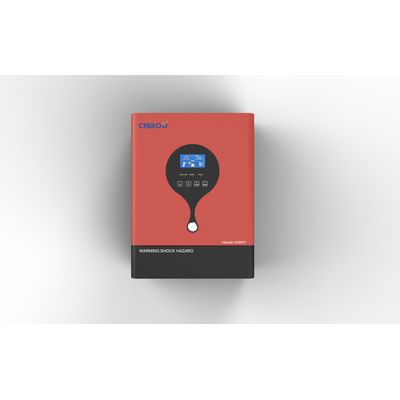

CNBOU Helios III - Model 243MCP -Off-Grid Inverter
Helios III(H3) series all in one off grid inverter without battery. designed with built-in MPPT solar charge controller, AC charger and pure sine wave inverter for all-in-one convenience and versatility. is best choice for off-grid solar systems.
Helios III(H3) series cost-effective off grid solar inverter, is 24Vdc 3500W off grid system, Supports without battery operation. Built-in MPPT solar charge controller, high voltage input 120Vdc-450Vdc, open circuit voltage 500Vdc, maximum solar panel input power up to 4500watt, charging current up to 100Amp, remaining part can be directly supplied to the load. The AC charging part adopts the latest bi-directional charging technology, and shares the transformer with the main inverter, so that the period charging current up to 80Amp. 24Vdc/3.5Kw supports up to 2000watt AC charging. 3.5Kw pure sine wave AC output, suitable for all types of loads, such as: refrigerators, air conditioners, compressors, motors, etc. 7000W peak power makes it support more ability to carry load. It is the best choice for solar system in home/RV/yacht/office, etc.
Without battery operation function makes solar system no have battery to build. Use solar panel directly to inverter for the load in good light conditions to complement utility power. Use RS232/RS485 to manage with BMS of lithium battery through Modbus or CAN communication protocol to make the system run more stable and to protect the lithium battery safely to make its life longer. Support WIFI or 4G to realize cell phone APP to monitor the system.
Helios III(H3) series off-grid solar inverter makes you set up off-grid solar system with lower cost, powerful and stable. It is your best off-grid inverter choice.
- 3.5Kw Design, 7Kw Peak Power.
- 10ms(For personal computers), 20ms(for Home appliances).
- Support LifePO4, AGM and Gel battery system.
- CAN or Modbus for BMS.
- Support WIFI/4G to IOS or Android app.
- Support without battery to running off grid solar system.
- AC charging part adopts the latest bi-directional charging technology.
- GB/T19001-2016 idt ISO9001:2015.
- Standard high-quality components.
- Quality inspection of the 5 processes of the assembly line.
- 100% full solar energy and load 60 minutes aging.
- Before packing all function check.
