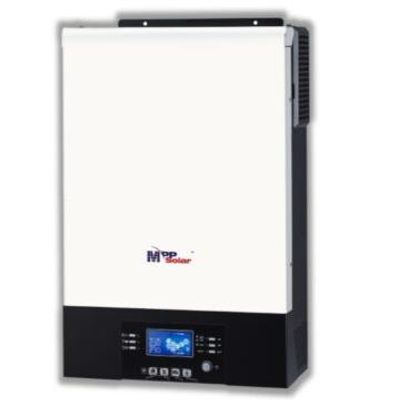

MPP - Model PIP-6048MGX-T (6KW, 2X Output) -Off Grid Solar Inverter

• maximum power output from 5KW to 6KW
• 2X dual AC output terminals for smart load management
• maximum PV input current 27A
• built-in WIFI transmitter (to monitor unit on iPhone/Android systems)

With the dual output, the 2nd output can be programmed to schedule ON/OFF control, cut-off voltage or SOC, and discharging time directly from LCD display.

• Generator rating is recommended to be 30-50% larger than the inverter rating to reduce chances of overload.
• Inverter-generators are strongly recommended due to its cleaner output than conventional generators.  Unsuitable generator output will be rejected by the inverter in order to protect battery/load.

• 2 AC output load terminals for smart load control

• Maximum power output now upgraded to 6KW
• Built-in WIFI transitter (for monitoring on iPhone/Android)
• Maximum PV input current now 27A
• Built-in BMS communication (select lithium BMS only)
• Max 6KW PV array
• High PV input 500V (Voc)
• Max system charging current 120A
• Battery optional mode
• Equalization mode available
• 6KW pure sine wave output, 48V system voltage
• Max utility charging current 120A
• Max solar charging current 80A
• Max Bulk/Float setting 64V
• Suitable for off-grid or with grid input
• Extensive programmable menu
• FREE monitoring software on PC / Mac / Linux
