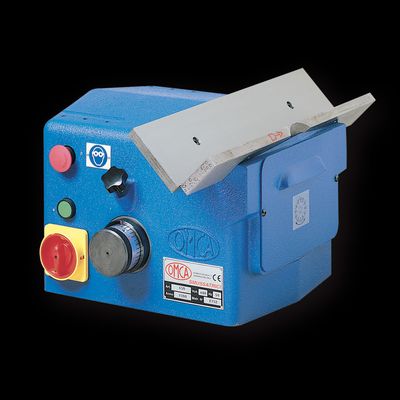

OMCA - Model ART. 650 A/L - Bench Bevelling Machines

Angle α45°. Bevel length L 10.

Most popular related searches

Motor Power 230/400 VOLT. 3 FASI-PHASE, 0,95 KW.(950W) 50/60 HZ
Bevel Length max 10 mm, max 0.393in
Bevel Angle 45°
Cutter Ø 70 mm – Z12, Ø 2.75in – Z12
Cutter Speed 2900 RPM – (*) 0 – 6000 RPM
Dimensions and weight 500x480x h320 mm – Kg. 52, 19.68 x 18.9 x h12.6 – 114.4lbs
Applications A= Acciaio/Steel, L=Leghe Leggere/Light Alloys
Bevel Radius R2, R3, R4 or R5

Performance
