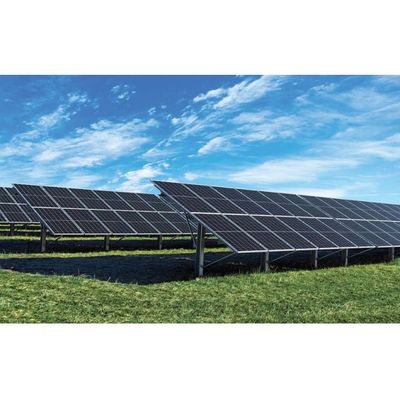

OMCO Solar - Model Field-Fast -Slide And Stay Fixed Tilt Mounting System

SHARE

OMCO Solar® manufactures two fixed-tilt solar mounting systems: the OMCO Choice™ Direct Bolt System and Field-Fast™ Slide and Stay System. Both are supplied Factory-Direct to our customers. OMCO Choice™ racking system provides the lowest material cost, meets stringent wind load requirements, and is ideal for utility-scale solar. OMCO’s Field-Fast™ Slide and Stay System provides the lowest total installed cost, comes with pre-assembled components to speed up installation and is ideal for community scale, commercial and industrial solar.

Most popular related searches

wind tunnel testing

solar mounting system

industrial solar

solar installation

commercial solar

Cost Component : FIELD-FAST System
Logistics :

FIELD-FAST Solar Racking structures can be manufactured in any of OMCO’s four manufacturing plants (OH, IN, AL, AZ)
Shipping costs are reduced by producing product in the most cost-effective location.

Customization :

Structure is designed to meet specific load and site requirements of each project.
Each element of structure can be selected from a family of options (gauges, shapes, heights, etc.)

In-House Manufacturing: :

OMCO Solar is the manufacturer of nearly all of its components.
Able to quickly adjust designs and manufacturing schedules.

MBOS Installation Labor Costs :

Solar Industry Experience helped OMCO Solar identify opportunities to streamline construction in the field.
Tilt bracket assembly comes pre-assembled from the factory.
Already set for the specified tilt angle.
Minimal chance of installing components incorrectly.
Minimal Number of Line Items
Minimal Quantity of Loose Hardware

Module Mounting Labor :

No need to waste manpower on staging parts.
Hardware comes to the site marked for where it needs to go on the jobsite.
No need to pre-assemble items in the field.

Pre-Assembly/Staging :

No need to waste manpower on staging parts.
Hardware comes to the site marked for where it needs to go on the jobsite.
No need to pre-assemble items in the field.

Site-Modification Work/Terrain Adaptability : Accommodates up to 20% grade change.
Solar Installation Velocity : Maximizes on-site labor efficiency to optimize labor force scheduling: more projects per crew.

Manufacturing : Field-Fast™ mounting system is shipped directly to project sites from OMCO’s own manufacturing plant.
Pre-Assembly : Each rack typically consists of five to seven pre-assembled components – the shortest bill of materials items in the solar industry for rapid site staging and installation.
Materials : Galvanized U.S. Steel, Per ASTM A653 – Latest Edition
Hardware : OR Zinc-Coated to 15 microns. Field-Fast ™ has the least number of loose parts of any racking system on the market. Hardware arrives pre-sorted for easy identification.
Module Compatibility : Any commercially available, framed flat-plate module.
In-Field Flexibility: Built-in adjustability features compensate for post misalignment and terrain elevation changes with no additional components. Proprietary custom slot configurations come standard on every Field-Fast™ mounting system.
Installation Rates : The FIELD-FAST™ system has the fastest module installation in the industry. Additionally, safety is enhanced because overhead lifting equipment is not required; two installers can fully erect the system while standing on the ground.
Table Configurations : 2 x 9 and 2 x 7 *Plus, Field-Fast™ can be configured to accommodate any site-specific requirements.
Racking Configurations : Field-Fast™ Racking can be designed to fit any site layout and accommodate any topical demands. Plus, no on-site welding or cutting of any component is required,
Terrain Articulation : Grade changes are accommodated with standard components from East to West.
Foundation Options : Driven Piles (C-Posts or Beams), Ground Screws, Helical Piles, or Ballasted.
Tilt Angle : Accomodates angles from 5° – 45°
Wire Management : Integrated Wire Management System
Bonding/Grounding : UL 2703 Compliant
Post Tolerances : East to West Post Tolerance ± to 1º | North to South Post | Tolerance ± to 1º
Load Capacities : Wind – Up to 180 MPH | Snow – Up to 90 PSF
Certifications : ISO 9001:2015 Standard, UL 2701 Ed. 1, CPP Wind Tunnel-Tested, NEC Compliant
Warranty : 20-Year Limited Warranty
