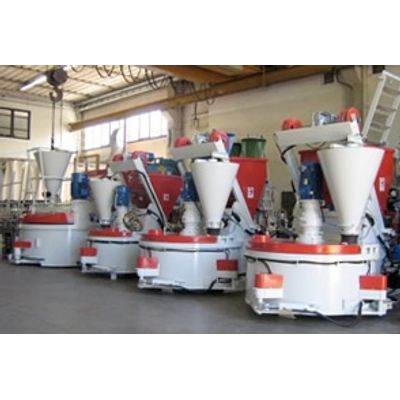

OMP - Planetary Mixer

All models can also be equipped with: Weighing system for cement batching. Supporting column with gallery and inspection Ladder.

Most popular related searches

N°1 Cylindrical tank with a capacity of 250 litres (150 litres for mod. MP150 – 375 litres for mod. MP375) in thick sheet with internal walls coated with interchangeable sectors in wear-resistant steel
N°3 Interchangeable mixing blades in wear resistant steel, shrunk at 120° on a single support that rotates around its axes and revolves around the
centre of the tank
N°1 Ratio-motor with epicycloid reducer driven by a 5.5kW electric motor (2.2kW for mod. MP150 – 9.5kW for mod. 375).
N°1 Loading skip sliding on guides inclined at 30° as compared to the vertical line. The skip is controlled by means of a winch in stranded steel rope and a ratio-motor with a 1.5 kW self-braking electric motor (0.75kW for mod. MP150 – 2kW for mod. MP375)
N°1 Hydraulic gearbox with a power of 0.75kW and a rated operating pressure of 80 bar

Width: 1100mm (MP150) / 1500mm (MP250) / 1750mm (MP375)
Length: 1600mm (MP150) / 1850mm (MP250) / 2100mm (MP375)
Height: 1800mm (MP150) / 2400mm (MP250) / 2400mm (MP375)
Net weight: 900Kg (MP150) / 1550Kg (MP250) / 1950Kg (MP375)
Electric power: 4kw (MP150) / 8kw (MP250) / 12.5kw (MP375)

Main Technical Features
