Preliminary specifications are subject to change without further notice – 7 June 2021

Note: Indicated weight is for double chamber fixed displacement pump. Additional weight is 20 kg for the Loadsense variable pump.
Power Levels E-motor and installed capacity: 0-30 kW, operational, peak power 45 kW, continuous power 15 kW 21 kWh (new and excluding aging)
Battery Technology: LiFePO4
Battery Lifetime: 2000 full cycles
Battery Heating: Electric 400W forced air, to enable full charging capacity – even at low temperatures
Battery Voltage: 80-115V
Battery Cell Protection: Balancing and active protection on all cells
Battery Pack Protection: Fully protected against overcurrent, over-, and under-voltage, excessive temperature use and charging
Motor Technology: AC motor with variable closed loop RPM contro
Control Interface: Either CAN, analogue, PWM, or I/O
Charging: On-board 3,3 kW Connector on drivers side (Left)
Charging Time: 6-7 hours
AC Installation Requirements: 3 x 400 V AC 50 Hz, standard 5 pole 16A CEE-plug and 16 Amp Group with RCD
24V Supply from ignition key: 16-32 VDC max 5A. Protection requirement, 10A fuse
Hydraulic Interface: Single or Dual chamber fixed displacement pump or single chamber LS variable displacement pump
Temperature Range: -20°C to +45°C (above 35°C power derating possible)
Cooling: Forced air
IP-grade: IP65, allowing high-pressure wash down. Note: high-pressure wash down not allowed directly in charging connector, IP44
Dimensions (L,W,H): 400 mm, 1280 mm, 1552 mm Note: Excl. hydraulic connections & cable entries & bolt heads
Weight (see notes): 410 kg
Options: Charge current reduction. Charging by chassis alternator via Inverter

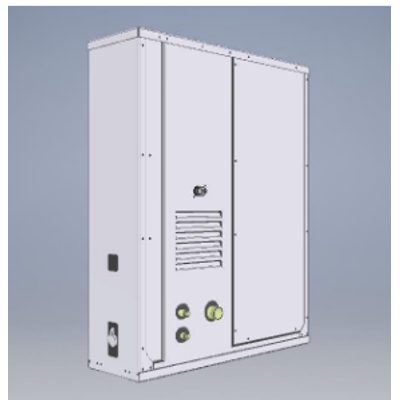

Banke - Model TM21 -On-Board Hydraulic System

Specifications
