Preliminary specifications are subject to change without further notice – 29 April 2020

Note: Indicated weight is for double chamber fixed displacement pump. Additional weight is 20 kg for the Load-sense variable pump
Power Levels E-motor and installed capacity : 0-30 kW, operational, peak power 45 kW, continuous power 20 kW 64 kWh (new and excluding aging)
Battery Technology : LiFePO4
Battery Lifetime : 2000 full cycles
Battery Heating : Electric 400W forced air, to enable full charging capacity – even at low temperatures
Battery Voltage : 80-115V
Battery Cell Protection : Balancing and active protection on all cells
Battery Pack Protection : Fully protected against overcurrent, over-, and under-voltage, excessive temperature use and charging
Motor Technology : AC motor with variable closed loop RPM control
Control Interface : Either CAN, analogue, PWM, or I/O
Charging : On-board 2 x 3,3 kW Connector on drivers side (Left)
Charging Time : 9 - 10 hours (double charger)
AC Installation Requirements : 3x400V AC 50 Hz, standard 5 pole 16A CEEplug and 16 Amp Group with RCD
24V Supply from ignition key : 16-32 VDC max 5A. Protection requirement, 10A fuse
Hydraulic Interface : Single or Dual chamber fixed displacement pump or single chamber LS variable displacement pump
Temperature Range : -20˚C to +45˚C (above 35˚C power derating possible)
Cooling : Forced air
IP-grade : IP65, allowing high-pressure wash down. Note: high-pressure wash down not allowed directly in charging connector, IP44
Dimensions (L,W,H) : 400 mm, 1925 mm, 1552 mm Note: Excl. hydraulic connections & cable entries & Bolt heads
Weight (see notes) : 825 kg
Options : Charge current reduction. Charging by chassis alternator via inverter

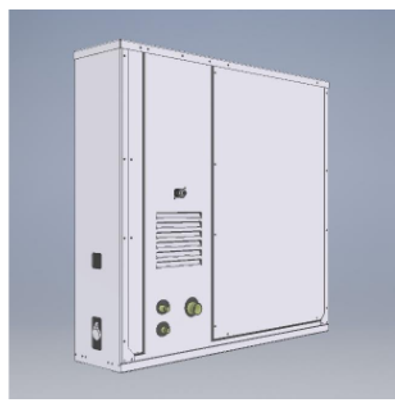

Banke - Model TM64 -On-Board Hydraulic System

Specification
