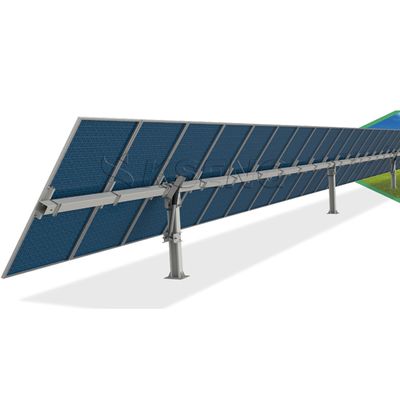

KSENG - Model KST-1P -One Portrait Horizontal Single axis Solar Tracking System
Kseng single-axis solar tracking mounting system is a solar photovoltaic mounting technology that allows solar panels to move along a single axis (usually east-west) in order to track the sun's trajectory, thereby increasing the efficiency of solar energy collection.
Most popular related searches
axis solar tracker
solar tracking system
solar tracking
photovoltaic module
single axis solar tracker system
solar photovoltaic mounting
solar tracker
solar mounting
photovoltaic mounting
solar photovoltaic
Kseng KST-1P solar bracket is designed with a tracking mechanism that follow the position of the sun as it moves from east to west. Single axis tracker can increase production between 25% to 35%. Adopt single-slew-drive, KST-1 P allows for large tracking range between ±60°, it's a relatively cost-effective solution with high stability.
Structure Parameters
- System type : One Portrait Horizontal single-axis tracking system
- Maximum capacity per row : 54KWp (Estimated with 600W PV -Modules)
- PV-Modules quantity per row : 90PCS{1Px90)
- Tracking range : ±60°
- Tracking accuracy : ±1°
- Materials : HDG Steel, Al-Mg-Zn Coating Steel
- Foundation : Concrete foundation, Steel pile, PHC pile
- Quantity of foundation/MW : 205PCS/MW (Estimated with 600W PV-Modules).
Controller Parameters
- Controller system : MCU
- Tracking metnod : Astronomical algoritnm+closed-loop control (Al)
- Signal transmission : Wire (RS485) or wireless (Zig bee)
- Drive method : Slew drive
- Motor type : DC 24V
- Power supply : AC-powered or self-powered
- Foundation : Concrete foundation, Steel pile, PHC pile
