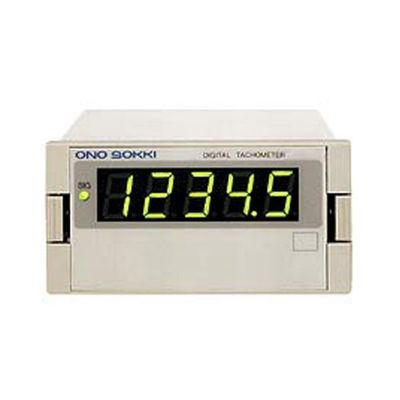

OnoSokki - Model TM-2110 -Panel Mount Tachometers

Display : 7-segment, green LED 5-digit. Display Update : approx. every one second. SIG Indicator : Flashes synchronized with input signals. Error Display : Flashing for excessive frequency input, display overflow and setting error. Units : r/min, min-1, Hz, kHz, m/min, r/s, s-1, km/h, mm/s, ml/min, l/h. Power Supply for Detectors : voltage : 12VDC (±0.6V)current : 100mA. Power Supply : 100 to 240VAC, 50/60 Hz, 11VA max. (16VA for TM-2130). Operating temperature : 41° to 104° F / 0 to +40°C. Outer Dimensions : 96(W) x 48(H) x 140(D) mm. Weight : approx. 630g. Description : Basic Type Display.
